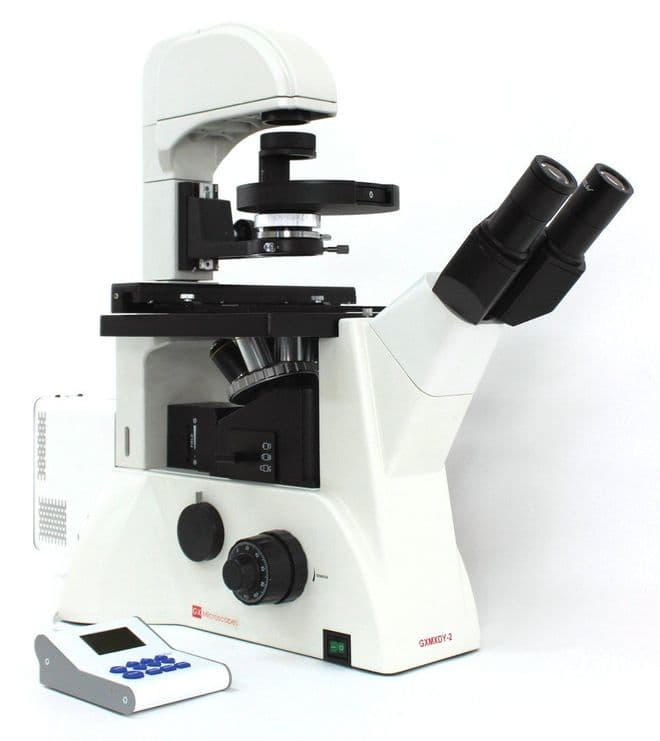

Inverted fluorescence microscope with phase contrast or polarisation contrast and advanced LED fluorescence illumination.
Fitted with full spectrum fluorescence illuminator this microscope is totally safe to use, no mercury vapour lamps to align and frequently charge and is instantly ready for use.
- High-intensity LED illumination for transmitted light
- Objectives from 4X-40X and with two dedicated sets to optimise either the fluorescence imaging and phase/polarisation contrast
- Fluorescence filters for common fluorochromes such as DAPI, FITC/GFP, Rhodamine/mCherry
- Large, FN 22mm eyepieces field of view, compact stand, mechanical stage
Additional product information
Brand and ID Number | Ultramacro UM1118 |
Eyepieces and Objectives | Pair of 10X Widefield FN22 Eyepieces. Centering telescope for phase set-up. Infinity Corrected Optics, 10X, 20X, 40X Brightfield, 10X, 20X, 40X Phase Plan Achromatic, (other mags optional) Long working Distance Objectives. 5 of the objectives can be mounted on the Quintuple revolving nosepiece. Brightfield/Fluorescence Objectives: PLL 10X0.25 Work distance:4.3 mm,Cover glass thickness:1.2mm. PLL 20X0.40 Work distance:8.0 mm,Cover glass thickness:1.2mm. PLL 40X0.60 Work distance:3.5 mm,Cover glass thickness:1.2mm. Phase Contrast Objectives: PLL 10X0.25 PHP2 Working distance:4.3 mm,Cover glass thickness:1.2mm. PLL 20X0.40 PHP2 Working distance:8.0 mm,Cover glass thickness:1.2mm. PLL 40X0.60 PHP2 Working distance:3.5 mm,Cover glass thickness:1.2mm. |
Head | Head with camera port with interpupiliary adjustment and diopter adjustment for the eyepiece tubes. The camera port accepts camera adapters. There is a photo/eyepiece lever. Inclination 45°,camera output has 100% of light. Interpupillary distance adjustment range:53 ~75mm |
Stand & Focus Mechanism | Substantial, high stability, research grade, stylish inverted microscope stand equipped with a coaxial coarse/fine focus mechanism with sample protection lock. 2 micron fine focus knob graduation marks. |
Stage and Condenser | Large, smooth, mechanical stage: size:227mm X 208mm;movement range: 77mm (longitudinal) X 114mm (transverse), Stage plate holders included: Culture dish holder 1 Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm Culture dish holder 2 Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm Culture dish holder 3 Inside locating slot size:57mm (W)X82mm (L) Long working distance phase contrast condenser with slider inserts mounted on a 'breadboard' style slider. Centre adjustable. |
Illumination | Adjustable, Brightfield and Phase bright 6V 30W Halogen (LED illumination is optional) superb for phase work. Includes blue, green and frosted filter set. Mercury Vapour Epi-Illuminator with 100W Osram lamp and timer controller. (LED available) Filter sets included: Exc 330nm~400nm Em 425nm Exc 395nm~415nm Em 455nm Exc 420nm~485nm Em 515nm Exc 460nm~550nm Em 590nm |
Customer reviews
Brand | Ultramacro |
Condition | New |
Product Code | UM1118B |
Weight | 20kg |
