Stages & Specimen Holders

UltraMacro Transilluminated XY Stage Fine Focus Stand

2 Axis 40mm  XY Precision Stage with Specimen Clip

A top quality micrometer precision X,Y  stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  Knobs control the X and Y movement of up to 13mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

2 Axis 60mm XY Precision Specimen Stage with Specimen Clip

A top quality micrometer precision X,Y  stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  Knobs control the X and Y movement of up to 13mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

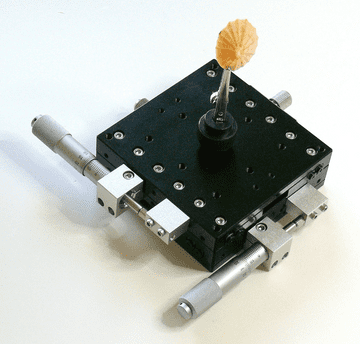

2 Axis 90 x 90  XY  Precision Stage with Specimen Clip

A top quality micrometer precision X,Y  stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  Knobs control the X and Y movement of up to 25mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

Overall Dimensions WDH (mm): 145 x 140 x 30 (shortest and XY retracted)
Stage Size (mm): 90 x 90
Maximum Travel XY (mm): 12.5-25 in X and Y
Weight (g): 820

2 Axis 125 x 125mm XY Precision Stage with Specimen Clip
A very high quality micrometer adjustable precision XY stage for mounting and positioning specimens. Perfect for use with the UM1004C Macro stand.   Includes locking screws and various mounting holes.  Includes rotatable specimen clip.

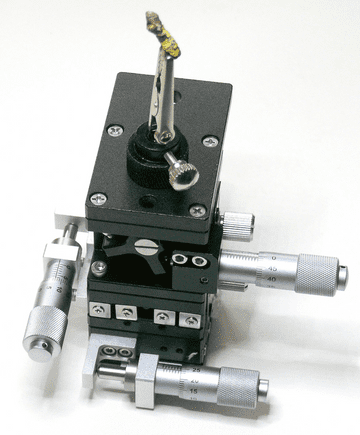

3 Axis 40mm XYZ  Precision Stage with Specimen Clip

A top quality micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Also there are similar knobs to control the X and Y movement of up to 13mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

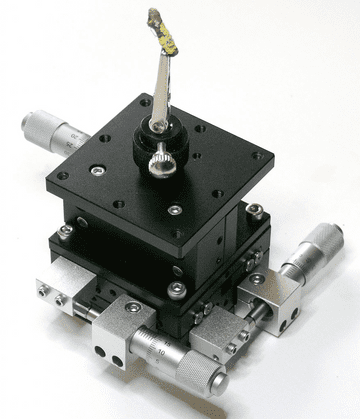

3 Axis 60 XYZ Precision Specimen Stage with Specimen Clip

A top quality micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen using the supplied rotatable crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Also there are similar knobs to control the X and Y movement of up to 13mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

3 Axis 90 x 90 x 10mm XYZ  Precision Stage with Specimen Clip

A top quality micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Also there are similar knobs to control the X and Y movement of up to 25mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements

3 Axis 125 x 125mm XYZ  Precision Stage with Specimen Clip

A top quality large micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen using the supplied rotatable crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Also there are similar knobs to control the X and Y movement of up to 25mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

4 Axis 40mm XYZ Theta Precision Stage with Specimen Clip

A top quality micrometer precision X,Y and Z-height adjustable stage with rotating platform for Theta that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Theta can be finely adjusted by 360 degrees. Also there are similar knobs to control the X and Y movement of up to 13mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

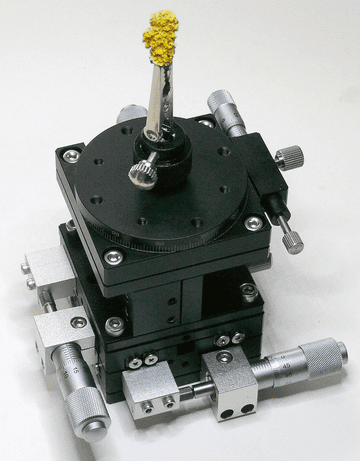

4 Axis 60mm XYZ Theta Precision Stage with Specimen Clip

A top quality micrometer precision X,Y and Z-height adjustable stage with rotating platform for Theta that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Theta can be finely adjusted by 360 degrees. Also there are similar knobs to control the X and Y movement of up to 13mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

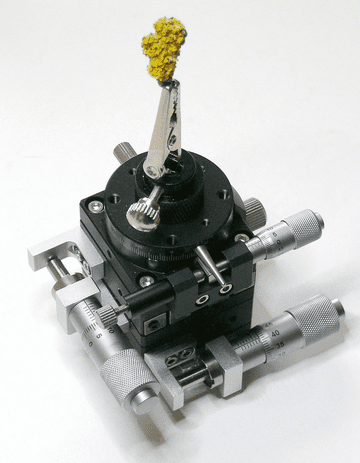

40 mm Horizontal  XY + Theta Rotation Precision Stage with Specimen Clip

Specimen holder with crocodile clip and fine control of XY and rotation. Can be mounted onto a tripod mount with a 1/4 bolt or onto a Z- axis height adjustment stage.  Excellent for sequence captured rotating movie shots and for positioning of specimens.  These simple crocodile clips are great for holding subjects either directly or for holding the pins and mounts onto which specimens have been placed such as insects. These holders can easily be mounted onto stands.  The movement range is 6.3-13mm in each axis.  There are calibrated vernier knobs on each axis also which give precise movement measurements should you need them.

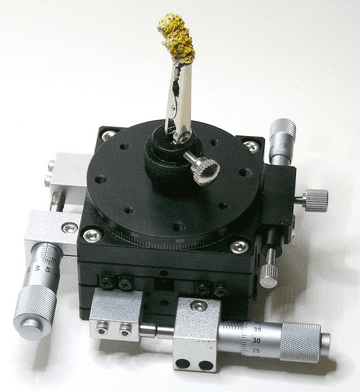

60 mm Horizontal XY + Theta Rotation Precision Stage with Specimen Clip

Specimen holder with crocodile clip and fine control of XY and rotation. Can be mounted onto a tripod mount with a 1/4 bolt or onto a Z- axis height adjustment stage.  Excellent for sequence captured rotating movie shots and for positioning of specimens.  These simple crocodile clips are great for holding subjects either directly or for holding the pins and mounts onto which specimens have been placed such as insects. These holders can easily be mounted onto stands.  The movement range is 6.3-13mm in each axis.  There are calibrated vernier knobs on each axis also which give precise movement measurements should you need them

Single Axis 90 x 90  Z Height Adjustable  Precision Stage with Specimen Clip

A top quality micrometer precision Z-height adjustable stage, great for fine focussing and focus stack acquisition that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  A knob control the Z movement of up to 10mm.  The movement has a graduated scale on the micrometer knobs so you can make extremely precise interval movements.

The stage can be mounted onto other XY stages to create a 3 axis movement system.

2 Axis 180 x 155mm XY  Precision Specimen Stage with Coaxial Control Knobs. This XY stage is extremely useful for the fine movement of specimens.  It has a glass platform and is hollow underneath so it can be used with transmitted under-illumination.

Single Axis Z Movement 60mm Precision Stage with Specimen Clip

A top quality micrometer precision Z-height adjustable stage, great for fine focussing and focus stack acquisition that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  A knob control the Z movement of up to 10mm.  The movement has a graduated scale on the micrometer knobs so you can make extremely precise interval movements.

The stage can be mounted onto other XY stages to create a 3 axis movement system.

Single Axis 125 x 125mm Precision Specimen Z Stage with Specimen Clip

A top quality large size micrometer precision z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder the ideal manual system for gathering a stack of images of subjects at high magnification.  In most cases using it to mount a specimen held in place with the crocodile clip is its most common usage.  It has 10 mm of Z travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  The movement has graduated scales on the micrometer knob so you can make extremely precise interval movements.

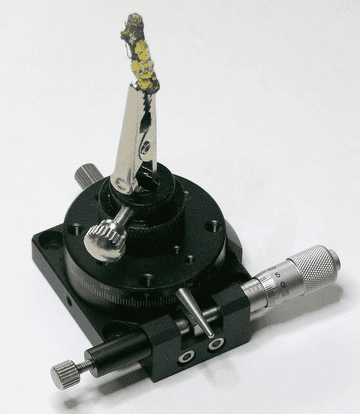

Ultramacro 40 mm Rotating Theta Precision Stage

Specimen holder with crocodile clip and fine control of rotation. Can be mounted onto one of our XY or XYZ stage.  Useful for positioning especially when used mounted on an XYZ table.  It is possible to take rotating subject sequence shots for the subsequent composition of stunning video sequences at high magnifications with this device.

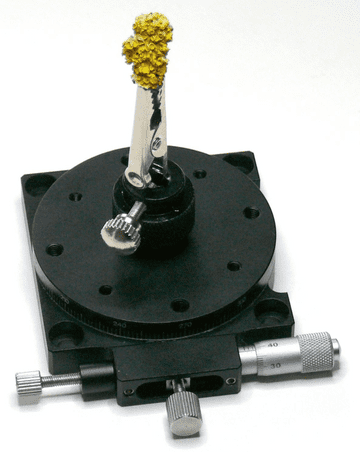

Ultramacro 60 mm Rotating Theta Precision Stage

Specimen holder with crocodile clip and fine control of rotation. Can be mounted onto one of our XY or XYZ stage.  Useful for positioning especially when used mounted on an XYZ table.  It is possible to take rotating subject sequence shots for the subsequent composition of stunning video sequences at high magnifications with this device.

A versatile single axis slider that can be mounted easily onto the UM1004 stand and on most other stands or a tripod. This rail can be used horizontally or vertically, although we think it is best in a horizontal position.  It has 100mm of travel on a rack and pinion controlled by turning a knob.

A very useful, basic, z-height adjustable stage that can be mounted easily onto the UM1004 stand and on most other stands or a tripod. The stage can be used to mount a specimen/specimen holder or a camera, an ideal, low cost manual system for gathering a stack of images of subjects at high magnification.

Flexible Specimen Holder

Mini Tripod Specimen Holder

The Horizontal Lens Mount by Ultramacro is the latest release in a series of products aimed at giving users of high magnification optics fine control over their lens and specimen positioning.
