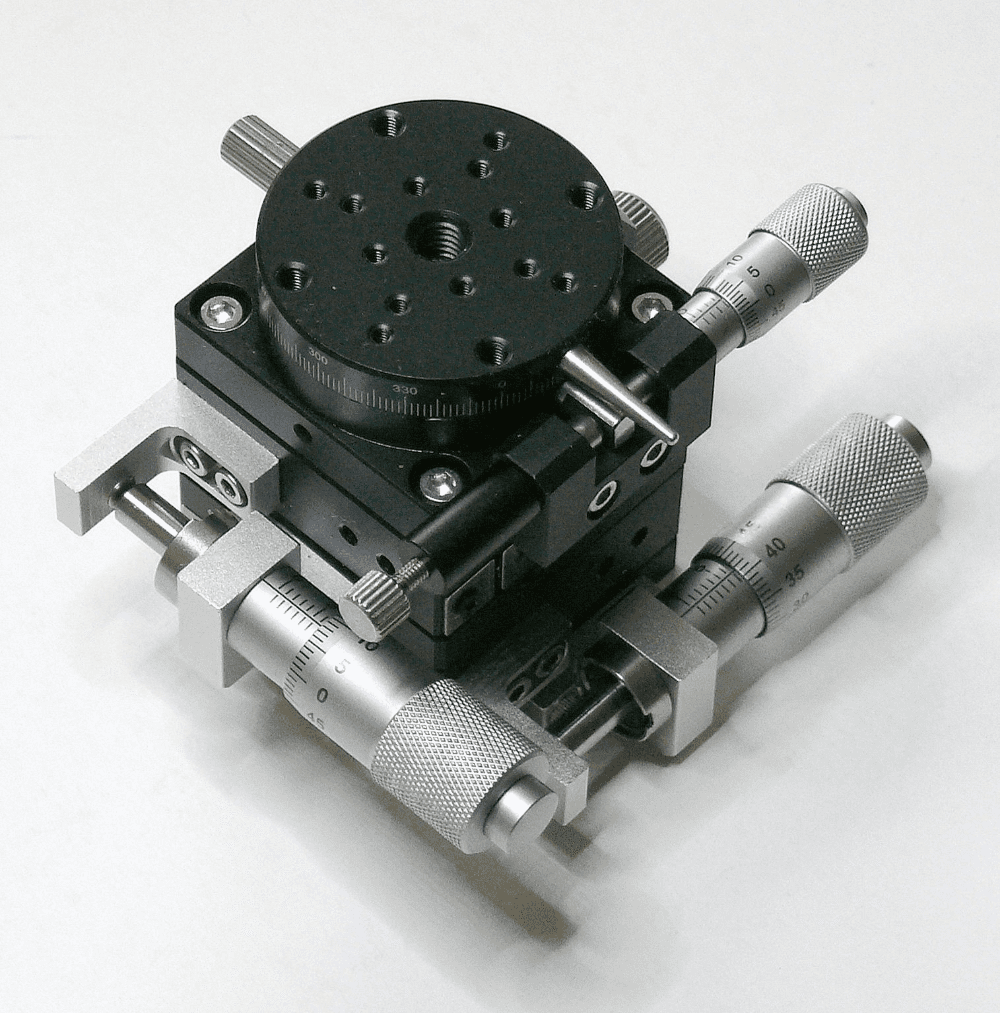

40 mm Horizontal XY + Theta Rotation Precision Stage with Specimen Clip
40 mm Horizontal XY + Theta Rotation Precision Stage with Specimen Clip

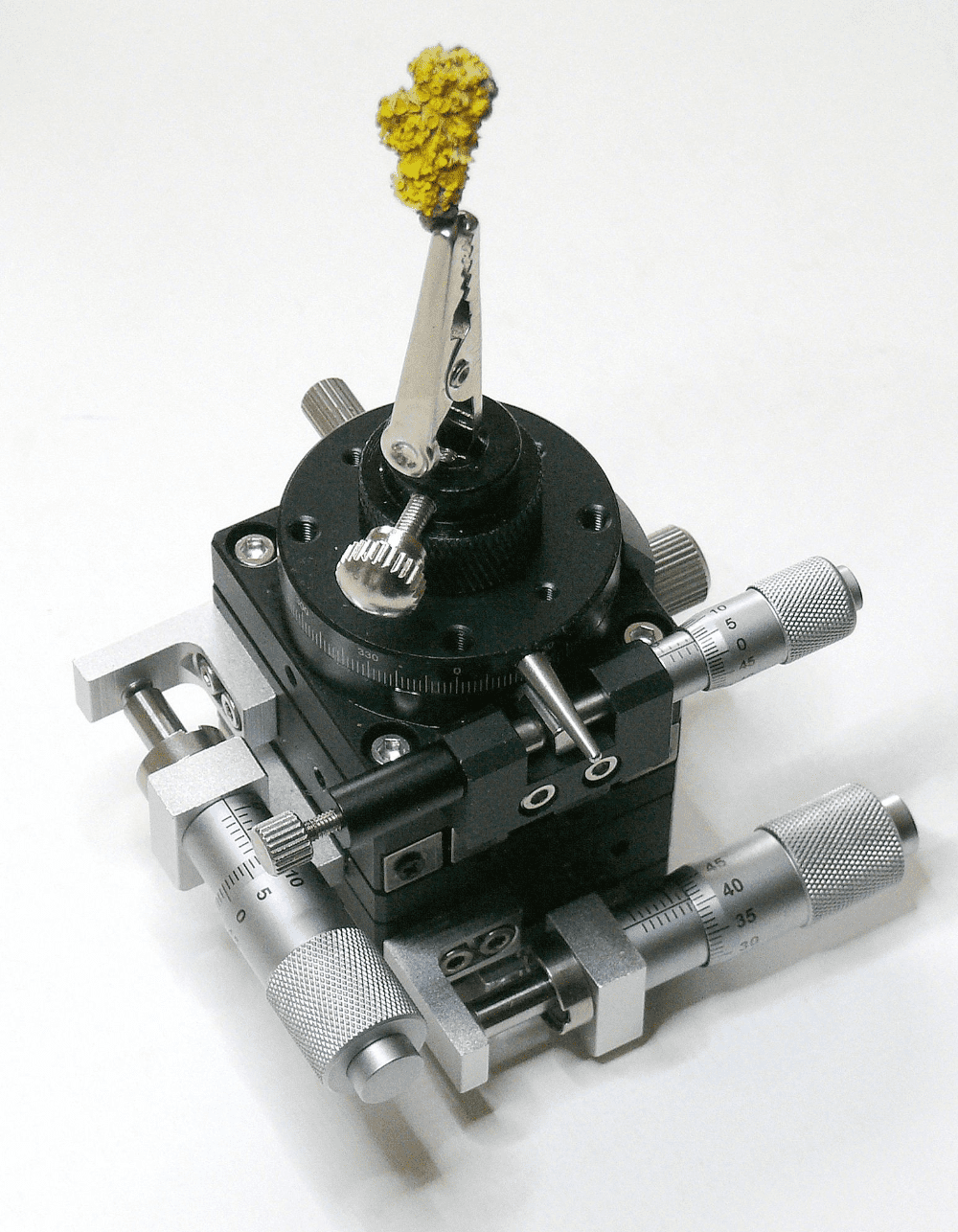

Specimen holder with crocodile clip and fine control of XY and rotation. Can be mounted onto a tripod mount with a 1/4 bolt or onto a Z- axis height adjustment stage. Excellent for sequence captured rotating movie shots and for positioning of specimens. These simple crocodile clips are great for holding subjects either directly or for holding the pins and mounts onto which specimens have been placed such as insects. These holders can easily be mounted onto stands. The movement range is 6.3-13mm in each axis. There are calibrated vernier knobs on each axis also which give precise movement measurements should you need them.
40 mm Horizontal XY + Theta Rotation Precision Stage with Specimen Clip
Specimen holder with crocodile clip and fine control of XY and rotation. Can be mounted onto a tripod mount with a 1/4 bolt or onto a Z- axis height adjustment stage. Excellent for sequence captured rotating movie shots and for positioning of specimens. These simple crocodile clips are great for holding subjects either directly or for holding the pins and mounts onto which specimens have been placed such as insects. These holders can easily be mounted onto stands. The movement range is 6.3-13mm in each axis. There are calibrated vernier knobs on each axis also which give precise movement measurements should you need them
Rotation: 360 degrees
Dimensions (mm) XYH: 75x80x60
Movement Range (mm) XY: 6.5-13mm in both axes
Stands, specimens or any other illustrative items shown in the pictures shown are not included. Due to our policy of continuous product improvement the precise appearance and specifications may alter slightly over time.
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM8000-XYR-C |
| Weight | 0.5kg |
