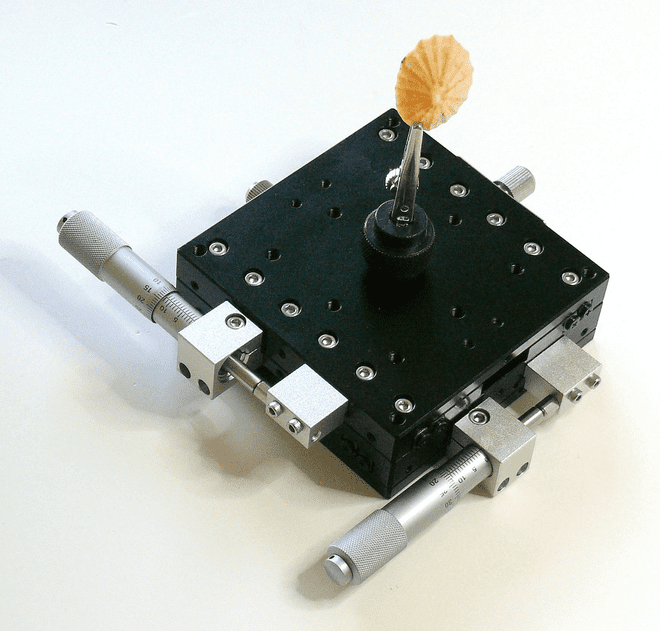

2 Axis 90 x 90 XY Precision Stage with Specimen Clip
2 Axis 90 x 90 XY Precision Stage with Specimen Clip

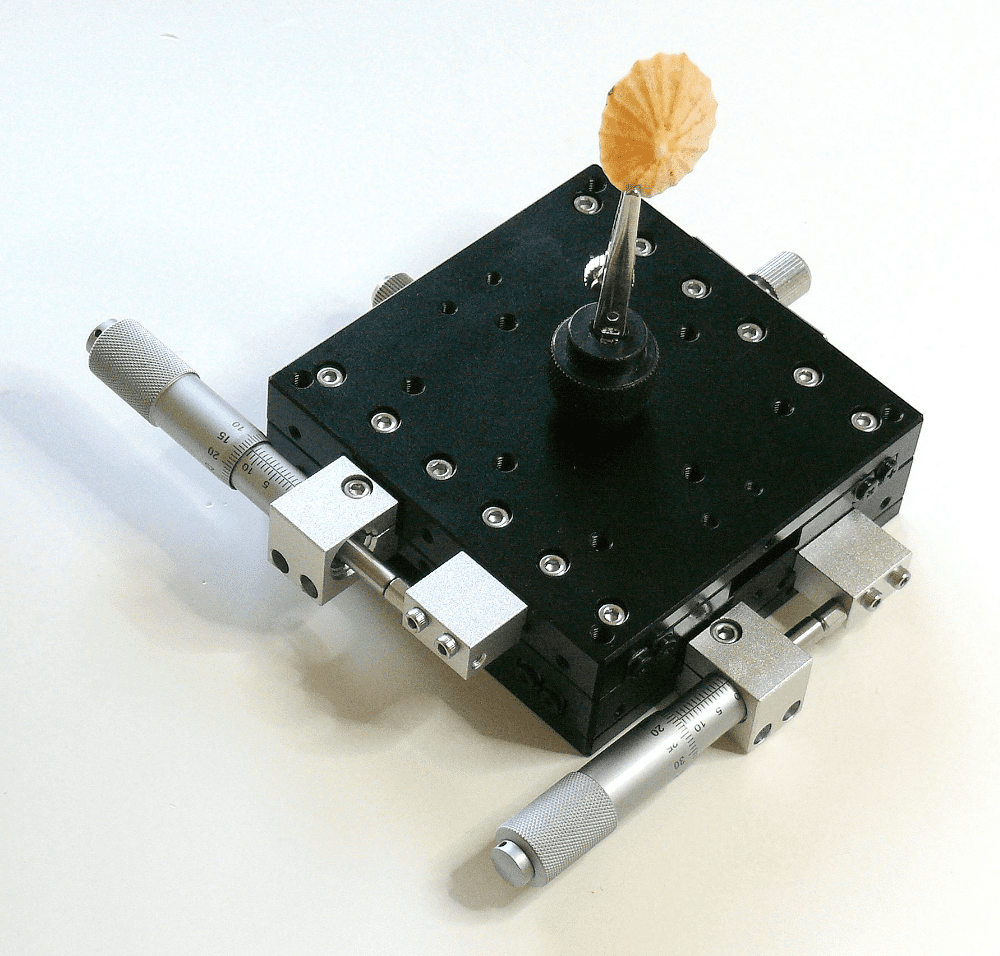

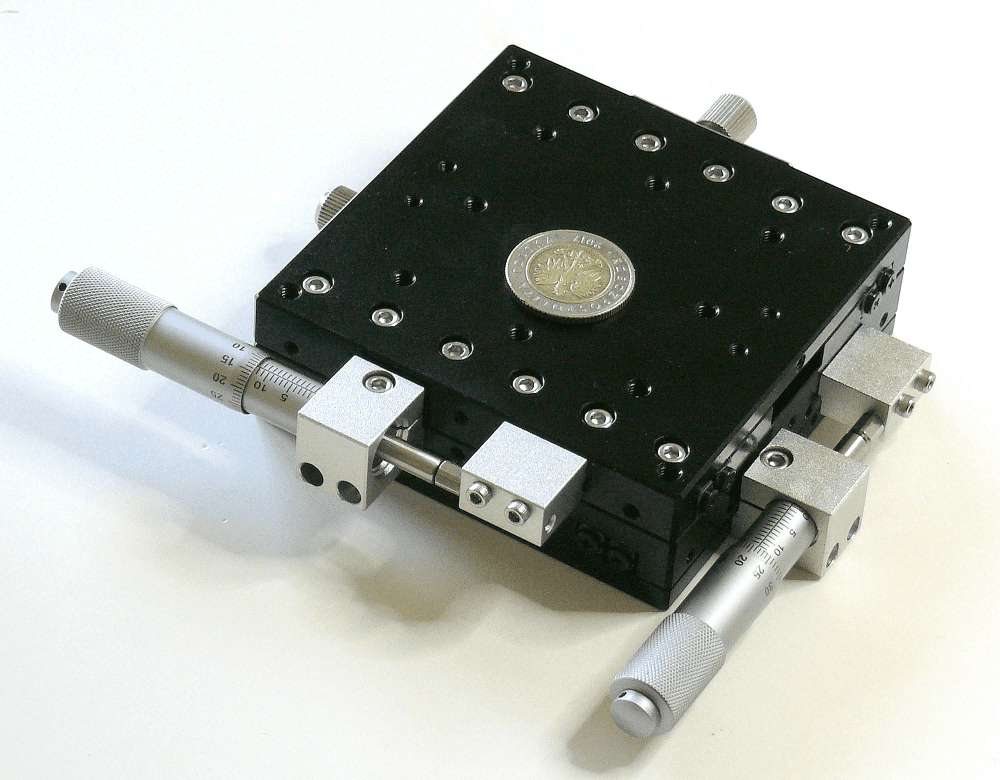

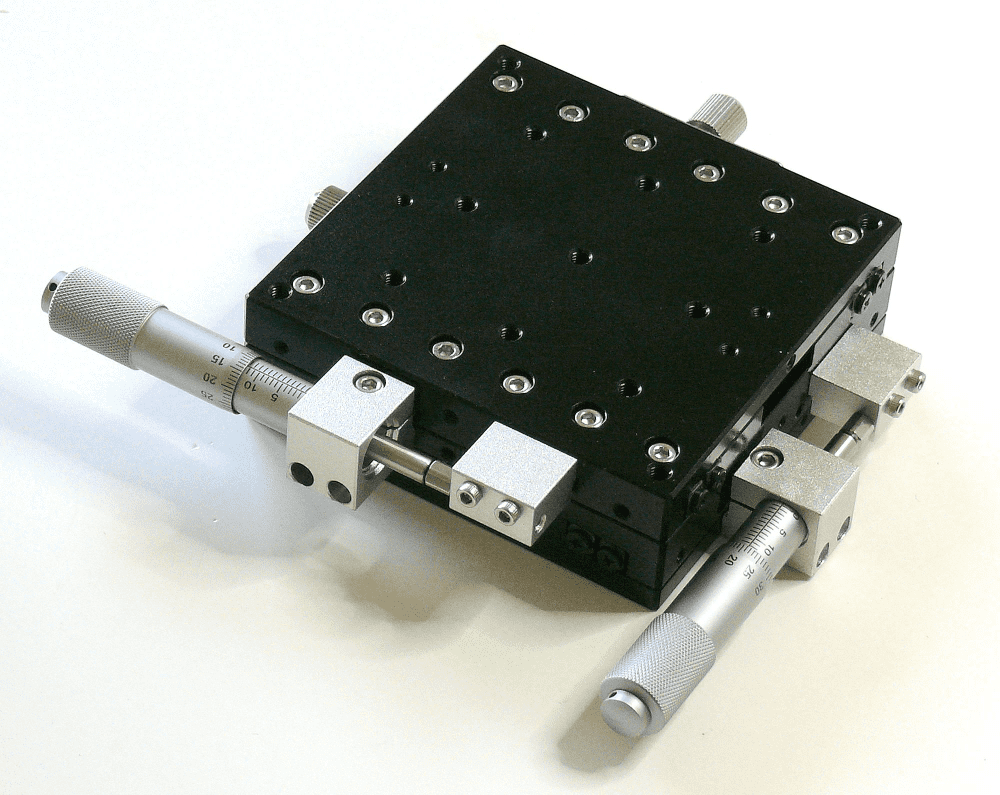

A top quality micrometer precision X,Y stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification. Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage. Knobs control the X and Y movement of up to 25mm in each axis. The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.
Overall Dimensions WDH (mm): 145 x 140 x 30 (shortest and XY retracted)
Stage Size (mm): 90 x 90
Maximum Travel XY (mm): 12.5-25 in X and Y
Weight (g): 820
2 Axis 90 x 90 XY Precision Stage with Specimen Clip
A top quality micrometer precision X,Y stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification. Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage. Knobs control the X and Y movement of up to 25mm in each axis. The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.
Overall Dimensions WDH (mm): 145 x 140 x 30 (shortest and XY retracted)
Stage Size (mm): 90 x 90
Maximum Travel XY (mm): 12.5-25 in X and Y
Weight (g): 820
Stands, specimens or any other illustrative items shown in the pictures shown are not included. Due to our policy of continuous product improvement the precise appearance and specifications may alter slightly over time.
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM8002-XY-C |
| Weight | 1kg |
