High Speed Cameras for Slow Motion

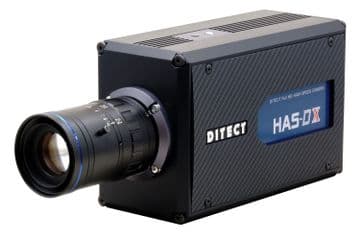

HAS-DX High Speed Camera - Superfast  2000 fps at full HD

• Manufactured by Ditect Japan
• Choice of colour or monochrome cameras (choose monochrome for higher speeds)
• 2000 FPS at 1920x1080 resolution!
• Max resolution 1920x1080
• 16 GB of internal memory
• Up to 100,000 FPS at 1920x4 resolution
• C-mount
• USB 3.0 connection (PC / tablet)
• Multi-camera connection, synchronisation and control are possible
• 12V / 20W
• Size: 82mm x 110mm x 185mm
• Weight: 1.5 kg
• Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
• Large 4/3 inch Sensor

HAS-D73 High Speed Camera - Light Sensitive and Fast

• Manufactured by Ditect Japan
• 2,000 FPS at 1280x1028 resolution
• Monochrome or colour
• 16 GB of internal memory
• Up to 15,000 FPS at 1280x116 resolution
• C-mount, minimum 1 micro sec exposure time
• USB 3.0 connection (PC / tablet)
• Multi-camera connection, synchronisation and control are possible
• 12V / 20W with AC
• Optional battery
• Size: 82mm x 110mm x 185mm
• Weight: 1.32 kg
• Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
• Large 1 inch Sensor

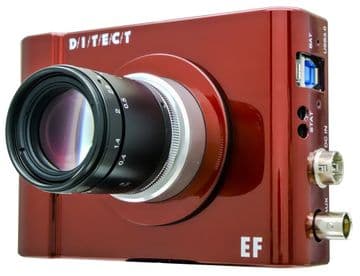

HAS-EF High Speed Camera - Fast, Compact, High Resolution

• Manufactured by Ditect Japan
• Choice of colour or monochrome cameras (choose monochrome for higher speeds)
• 500 FPS at 1920x1080 resolution
• Max resolution 2560 x 2048 (5MP)
• 6 GB of internal memory
• Up to 14,000 FPS at 256x32 resolution
• C-mount, minimum 100 micro sec exposure time
• USB 3.0 connection (PC / tablet)
• Multi-camera connection, synchronisation and control are possible
• 12V / 12W
• Size: 45.6mm x 98.5mm x 128mm
• Weight: 0.5 kg
• Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
• Large 1 inch Sensor

HAS-U2 High Speed Camera - Compact, High Resolution

• Manufactured by Ditect Japan
• Choice of colour or monochrome cameras (choose monochrome for higher speeds)
• 250 FPS at 1920x1080 resolution
• Max resolution 2592 x 2048 (5MP)
• 2 GB of internal memory
• Up to 7,500 FPS at 320x20 resolution
• C-mount, minimum 10 micro sec exposure time
• USB 3.0 connection (PC / tablet) Micro-B Interface
• Multi-camera connection, synchronisation and control are possible
• 5V / <4.5W
• Size: 44mm x 44mm x 81.5mm
• Weight: 0.21 kg
• Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
• Large 1 inch Sensor

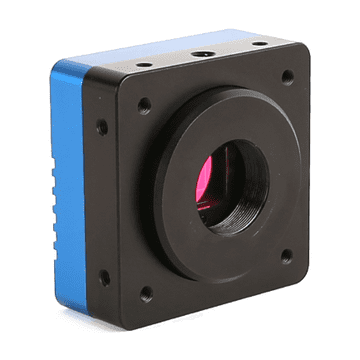

IUA Series Machine Vision, USB3, High Speed Camera Series
Speeds from 98 to 523 frames per second

Summary

• Choice of colour or monochrome cameras (choose monochrome for higher speeds)
• Speeds from 98 to 523 frames per second
• Choose resolutions from 0.39 to 7.1MP
• Extremely Compact Design
• C-Mount
• Supplied with ToupView control and analysis software
• Supplied with Windows/Linux/OSX multiplatform SDK
• Supports native C/C++, C#/VB.Net, DirectShow, Twain API
• Supports external triggering, digital I/O and free-running modes
• Supports RO
• 1.5MPI, flip, bit-depth switching and other features
• Uses USB3.0 to transmit uncompressed images in real time
• Provides image acquisition and parameter setting (such as working mode, image parameter adjustment etc.) through client-side user-friendly software
• USB 3.0 connection
• Size: 80 x 80 x 45mm
• Lightweight
• Supplied System includes: Camera, software, USB 3.0 cable
• IMX273 series sensors
• Lenses, Illumination, microscopes and microscope adapters can be supplied

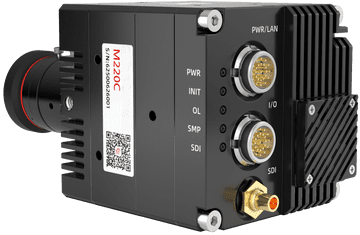

Revealer M Series high-speed Cameras bring together unique CMOS image sensor technologies and extensive high-speed digital imaging expertise to provide a camera with the flexibility to be used in a wide variety of applications such as high-precision scientific research, national defence, and high-speed industrial fields etc.

This series has top performance, special functions and powerful capabilities of data transmission / storage / processing, can help you precisely freeze "key moments" of each frame, and recording rates up to 25,000fps are available at reduced image resolutions.

Revealer X Series high-speed Cameras are high quality, high speed devices built by Qianyanlang designed for scientific research.  Equipped with high a transfer bandwidth of up to 16GB/s delivering powerful data collection and processing capabilities.

The key advantages of this technology are massive data throughput (1280x1024 at 13,600 FPS), professional image quality incorporating a dedicated ISP processing chip with automatic white balance, colour correction, gamma, defogging, denoising, sharpening and other modules.

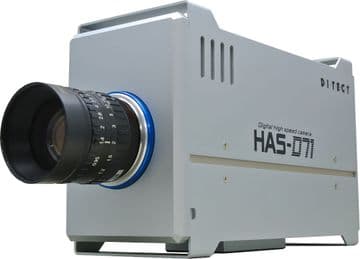

HAS-D71 High Speed Camera - Light Sensitive and Fast

• Manufactured by Ditect Japan
• 8,000 FPS at 640 x 480  resolution
• Monochrome or colour
• 16 GB of internal memory
• Up to 120,000 FPS at 640 x 12 resolution
• C-mount, minimum 1 micro sec exposure time
• USB 3.0 connection (PC / tablet)
• Multi-camera connection, synchronisation and control are possible
• 12V / 20W with AC
• Optional battery
• Size: 73 mm x 118 mm x 187.4 mm
• Weight: 1.2 kg
• Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
• 1/1.8 inch sensor
