UM-HF-M220 High Speed Camera, High Res, C-Mount GBit, Fast. Max 16.9k fps

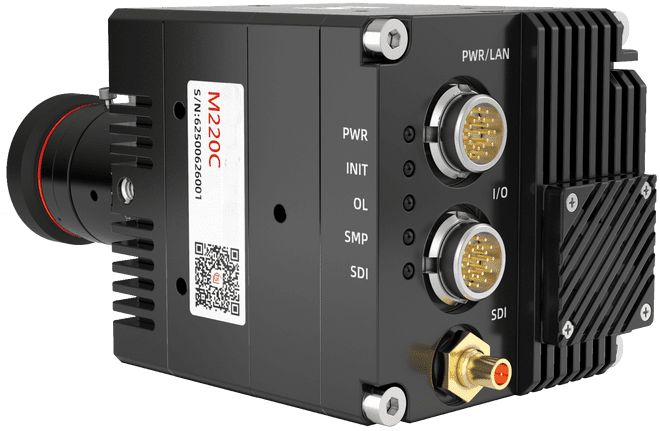

UM-HF-M220 High Speed Camera - Revealer Mini Series


Summary

• Up to 2,000 FPS at 1920x1080 resolution
• Monochrome or colour
• 64GB of internal memory
• 16,949 FPS at 256x128 resolution
• C-mount
• GigE Interface
• Triggering available
• 40W with AC
• Very Compact Size: 75mm x 75mm x 140mm
• Weight: 1.3 kg
• (lens not included, lenses, microscopes and microscope adapters can be supplied)

Description

Revealer M Series high-speed Cameras bring together unique CMOS image sensor technologies and extensive high-speed digital imaging expertise to provide a camera with the flexibility to be used in a wide variety of applications such as high-precision scientific research, national defence, and high-speed industrial fields etc.

This series has top performance, special functions and powerful capabilities of data transmission / storage / processing, can help you precisely freeze "key moments" of each frame, and recording rates up to 25,000fps are available at reduced image resolutions.

Features:
◆ Ultra-high shooting rate, large data throughput
Full frame rate (@2M Pixel) is up to 2000 frames per second.
◆ Continuous recording
64GB (larger memory is available) large-capacity high-speed RAM storage, supports continuous shooting for up to 15.5s.
◆ Broadcast-level picture quality
Can record original data, comes with colour optimization modules, including white balance, colour correction, Gamma, denoising, haze removal, sharpening and other algorithms itself.
◆ Multi-scene adaptation and ease of use
Provides rich functions such as EDR, PIV, image trigger, quick positioning of key frame, etc., suitable for various applications.

Frame rate and format
Max resolution = 1920x1080 Up to 2,000 FPS at resolution
Max fps at max resolution = 2,000fps
Max fps = 16,949fps at 256x128

Camera control software
Camera control software for PC is supplied free of charge with every camera.

Example Applications

Defence Applications
Impact analysis & ballistics

Production Machines
Press machine/printing machine behaviour, failure cause analysis

R&D
Crash test, structure collapse, vehicle movement, electric arcs

Image analysis
Any PIV/Motion capture experiment of fast phenomena

Microscopy
Microorganism/sperm/metal stock behaviour
