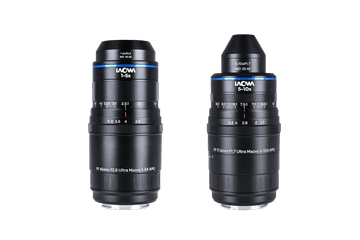

    Laowa Aksen 1-5X & 5-10X Ultra Macro APO

    The Laowa Aksen series (1–5X & 5–10X) redefines high-magnification macro by eliminating the limitations of traditional lenses.

    Its groundbreaking parfocal zoom means the focus on the subject remains locked even as you change magnification. Powered by an internal zoom mechanism, the Aksen series has a fixed working distance, meaning you can fluidly scale your shot without needing to reposition your camera or disrupt the lighting setup.

    With APO design optics, the Aksen series eliminates colour fringing to deliver flawless, ultra-sharp detail at any magnification level.

    LENS VERSIONS
    You can choose between the 1X-50X lens version or the 5X-10X lens version.  There is also an option for a bundle of both lenses at a discounted price.

    COAXIAL ILLUMINATION
    The coaxial illuminator is a method of projecting a light through the lens directly onto the subject.  It is not suitable for some subjects, so other illumination is recommended - see our  illumination section.
    Coaxial illumination is only available on the 5X-10X lens and must be ordered with the lens.

    please note:
    Coaxial light is just one technique, it is common in microscopy but not photography and has limited uses — it is not the only solution for every shot.

    • It works great on flat, shiny surfaces.  It was designed for looking at polished, perfectly flat metallurgical or geological specimens.  If the light does not reflect perfectly up into the lens it will not work well, normal side or underneath lighting techniques are required depending on the transparency of the subject
    • It does not work well on every object.
    • It's not a torch, it does not work like a normal lamp

    Unlike its industrial microscopy origins, coaxial lighting is relatively new and experimental as a creative tool for photographers. We would suggest exploring mixed lighting, stacking, or unconventional angles — such as using subjects that are blocked from side-angled light.
    ● Flat surface, but emphasis edges
    ● Makes reflective surfaces "pop"
    ● Reveal hidden color and texture
    ● Eliminates unwanted shadows

    Other vendors of the coaxial illumination option do NOT include the LED light option, please note that this item is included in our option price.

    MOTORISED AUTORAIL
    We have included our AutoRail and an AutoRail with Macrostand as an option for automated motorised capture of focus stacks SEE HERE for full details.

    AutoRail:

    UltraMacro/WeMacro Auto-Rail Kit - incl. power pack connection & specimen holder

    AutoRail with Macrostand:

    UltraMacro/WeMacro Auto-Rail Complete - incl. macrostand, power pack connection & specimen holder

    XY & Z SPECIMEN HOLDERS AND STAGES
    We have included options for just some of our many stages which can be vital for bench work at high magnifications.  Full details of our range can be found HERE

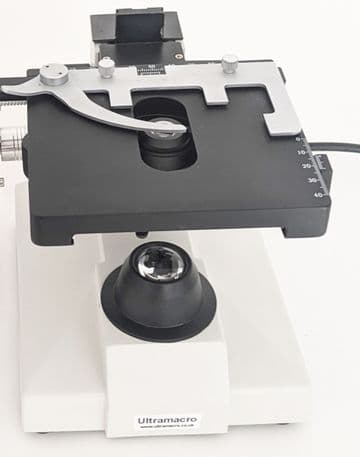

    3 Axis Transilluminated 135 x135mm XY Stage with Fine Focus Stand
    3 Axis Transilluminated 135 x135mm XY Stage with Fine Focus Stand

    2 Axis 60mm XY Precision Specimen Stage with Specimen Clip
    2 Axis 40mm XY Precision Stage with Specimen Clip

    2 Axis 125 x 125mm XY Precision Stage with Specimen Clip
    2 Axis 125 x 125mm XY Precision Stage with Specimen Clip

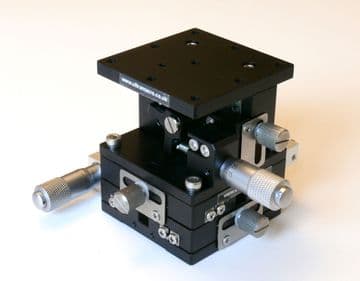

    3 Axis 60 XYZ Precision Specimen Stage with Specimen Clip
    3 Axis 60 XYZ Precision Specimen Stage with Specimen Clip

    3 Axis 125 x 125mm XYZ Precision Stage with Specimen Clip
    3 Axis 125 x 125mm XYZ Precision Stage with Specimen Clip


    AKSEN RANGE DETAILS & SPECIFICATIONS:

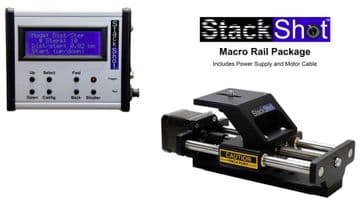

  • Cognisys STACKSHOT MACRO RAIL PACKAGE

    Cognisys STACKSHOT MACRO RAIL PACKAGE

    (1)
    Cognisys STACKSHOT MACRO RAIL PACKAGE
    StackShot is an electronically controlled macro rail system that coordinates the movement of the macro rail and the triggering of the camera. StackShot’s simple user-interface makes the automation of the entire image collecting process for focus stacking very easy.

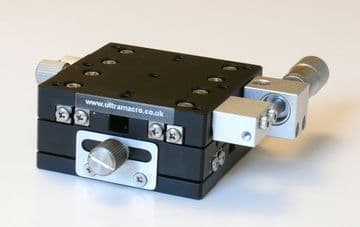

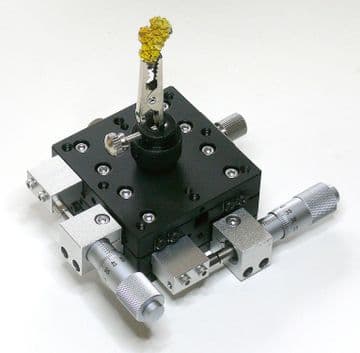

  • 2 Axis 60mm XY Precision Specimen Stage with Specimen Clip

    2 Axis 60mm XY Precision Specimen Stage with Specimen Clip

    2 Axis 60mm XY Precision Specimen Stage with Specimen Clip

    A top quality micrometer precision X,Y  stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  Knobs control the X and Y movement of up to 13mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

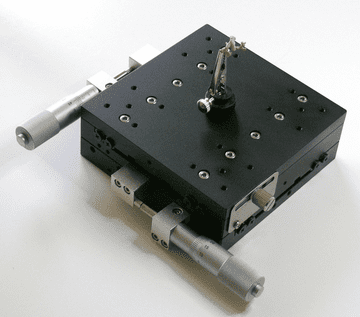

  • 2 Axis 125 x 125mm XY Precision Stage with Specimen Clip

    2 Axis 125 x 125mm XY Precision Stage with Specimen Clip

    2 Axis 125 x 125mm XY Precision Stage with Specimen Clip
    A very high quality micrometer adjustable precision XY stage for mounting and positioning specimens. Perfect for use with the UM1004C Macro stand.   Includes locking screws and various mounting holes.  Includes rotatable specimen clip.

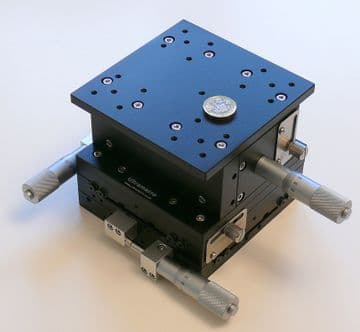

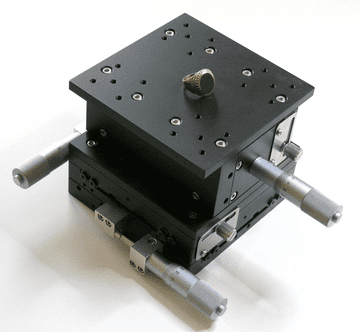

  • 3 Axis 125 x 125mm XYZ Precision Stage with Specimen Clip

    3 Axis 125 x 125mm XYZ Precision Stage with Specimen Clip

    3 Axis 125 x 125mm XYZ  Precision Stage with Specimen Clip

    A top quality large micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen using the supplied rotatable crocodile clip is its most common usage.  It has 20 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Also there are similar knobs to control the X and Y movement of up to 25mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

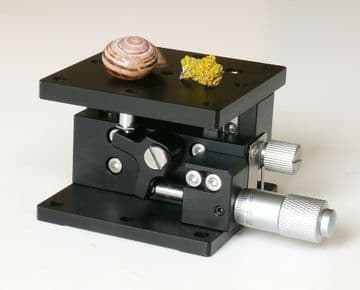

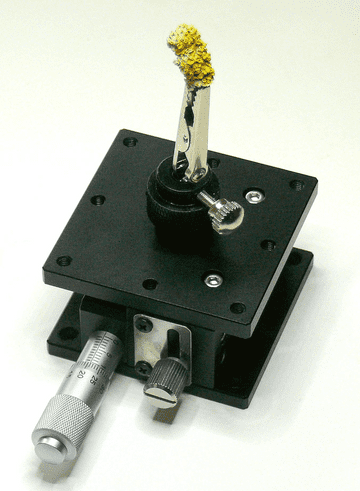

  • Single Axis Z Movement 60mm Precision Stage with Specimen Clip

    Single Axis Z Movement 60mm Precision Stage with Specimen Clip

    Single Axis Z Movement 60mm Precision Stage with Specimen Clip

    A top quality micrometer precision Z-height adjustable stage, great for fine focussing and focus stack acquisition that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  A knob control the Z movement of up to 10mm.  The movement has a graduated scale on the micrometer knobs so you can make extremely precise interval movements.

    The stage can be mounted onto other XY stages to create a 3 axis movement system.

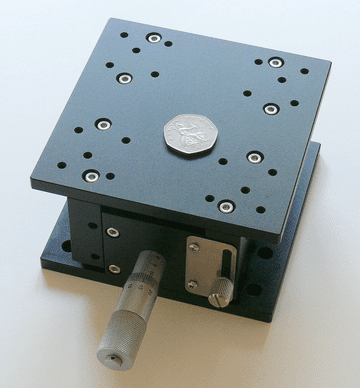

  • Single Axis 125 x 125mm Precision Specimen Z Stage

    Single Axis 125 x 125mm Precision Specimen Z Stage

    Single Axis 125 x 125mm Precision Specimen Z Stage with Specimen Clip

    A top quality large size micrometer precision z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder the ideal manual system for gathering a stack of images of subjects at high magnification.  In most cases using it to mount a specimen held in place with the crocodile clip is its most common usage.  It has 10 mm of Z travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  The movement has graduated scales on the micrometer knob so you can make extremely precise interval movements.

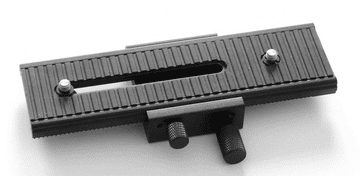

  • Single Axis Fine Movement Rail

    Single Axis Fine Movement Rail

    A versatile single axis slider that can be mounted easily onto the UM1004 stand and on most other stands or a tripod. This rail can be used horizontally or vertically, although we think it is best in a horizontal position.  It has 100mm of travel on a rack and pinion controlled by turning a knob.

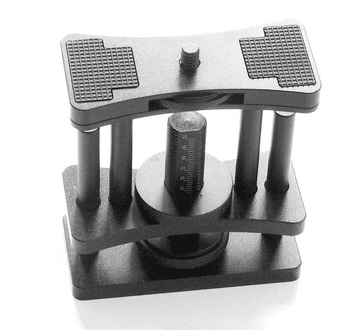

  • Single Axis 84 x 40mm Adjustable Vertical Stage

    Single Axis 84 x 40mm Adjustable Vertical Stage

    A very useful, basic, z-height adjustable stage that can be mounted easily onto the UM1004 stand and on most other stands or a tripod. The stage can be used to mount a specimen/specimen holder or a camera, an ideal, low cost manual system for gathering a stack of images of subjects at high magnification.

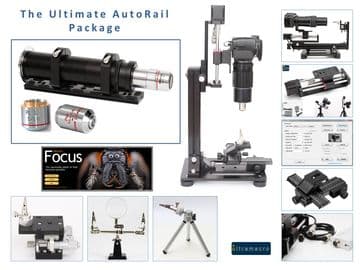

  • The Ultimate AutoRail Package

    The Ultimate AutoRail Package

    With this truly comprehensive professional kit you get everything you need to immediately start creating stunning high resolution, unlimited depth of focus images at high magnification
