Laowa Aurogon FF 10-50X Supermicro APO Lens Set

Product code: UM1203-canon
Laowa Aurogon FF 10-50X Macro Tube Set

Laowa has taken a great leap forward in designing and producing the AUROGON Fixed-Focus 10-50X NA 0.5 Supermicro APO Lens set. This is a precise lens set, priced to be within reach of professionals and hobbyists, who want to work in the field of high magnification photography.

Laowa AUROGON turns your camera into a microscope, and yet, more than a microscope, enabling you to capture what cannot be seen with the naked eye.

This serious lens set is ideal for both micro-photography beginners and for professionals wishing to upgrade from jury-rigged combinations of mis-matched components.

PRODUCT FEATURES
- A range of 8 mounts for most cameras
- Full frame compatible
- 10X, 20X, 35X and 50X magnifications
-  Adjustable Numerical aperture 0.5 - 0.15
- Interchangeable magnification tubes
- Fixed 20mm working distance
- Ideal for use with horizontal or vertical Focus Rails
- Astounding results when used with Stacking Software
- Supplied with sturdy padded case for storage

MOUNT VERSIONS - Canon EF, Canon RF, Sony E, Nikon F, Nikon Z, L mount, and Fujifilm G mount.

PRODUCT DESCRIPTION

The revolutionary Laowa AUROGON Lens Set enables you to think out of the box, bringing clean and clear magnified details of your tiny subject under the 4 magnifications ( from 10x,20x,35x to 50x )

Unlike the ordinary infinity-corrected objectives used in microscopes, Laowa AUROGON provides high magnification shooting capability direct to your camera whether in the lab, at home, or even out in the field.

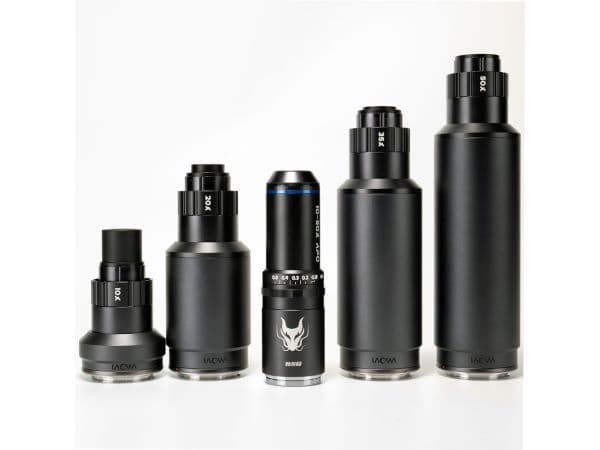

The lens body is formed of 2 parts: the switchable magnification tubes mounting onto the camera, and the objective lens at the front. With a fixed setup, you can switch the magnification tubes at the back effortlessly without recalibration of of your setup.

The 8 grade Numerical Aperture values of 0.5 – 0.15 indicated on the objective lens addresses the depth of field for microscopic shooting. The wide NA provided with ample lighting ensures that when capturing images, a lower ISO value can be used, resulting in a purer picture. With manual NA, photographers can enjoy flexible aperture control with their own setup to create images with best quality.

Stability is crucial when working in micro-photography and particularly at higher magnifications. For this, Laowa can provide a set of mounting rings to allow the camera setup to be mounted on a stable platform be it a tripod, work table or a focus rail.

The AUROGON lens set is ideal for use with a motorised focus rail and it's accompanying Stacking Software.

The Laowa AUROGON is designed with Full-frame coverage, comes with 8 mount options, including Arri PL, Canon EF, Canon RF, Sony E, Nikon F, Nikon Z, L mount, and Fujifilm G mount.

Supplied in a sturdy padded case for secure storage and transport

TECHNICAL SPECIFICATIONS

Lens model:    Laowa Aurogon FF 10-50x NA0.5 Supermicro APO
Mount:    PL Mount
Format:    Full Frame
Lens Format:    Objective lens + 4 Magnification tubes
Magnification Tubes:    10x, 20x, 35x, 50x
Adjustable numerical aperture (NA):    0.5/0.45/0.4/0.35/0.30/0.25/0.2/0.15
Working distance:    20mm
Maximum objective diameter:    50mm
Length of the objective lens:    167mm
Weight of objective lens:    390g
Aperture blades:    9
Focus system:    Manual
Wavelength ranger:    435-656nm
Objective lens  +tube lens focal length:

10x tube: 18.8mm
20x tube: 10.3mm
35x tube: 6.85mm
50x tube: 5.56mm

Maximum diameter of tube lens:    70mm

Length of tube lens (excluded cover)

 10x tube: 112mm
20x tube: 163mm
35x tube: 210mm
50x tube: 253mm


Weight of tube lens:

 10x tube: 377g
20x tube: 444g
35x tube: 530g
50x tube: 609g

Maximum Distortion:

10x tube: 0.60%
20x tube: 0.80%
35x tube: 0.40%
50x tube: 0.40%

Image field diameter:    Full frame (24mm×36mm)

Conjugate distance:

10x tube: 299.4mm
20x tube: 370mm
35x tube: 420.2mm
50x tube: 465.1mm

BOX CONTENTS

Laowa Aurogon FF 10-50x NA0.5 Supermicro APO - PL mount, contains:
Aurogon Objective lens
10x tube
20x tube
35x tube
50x tube
Lens caps
Hard Case
