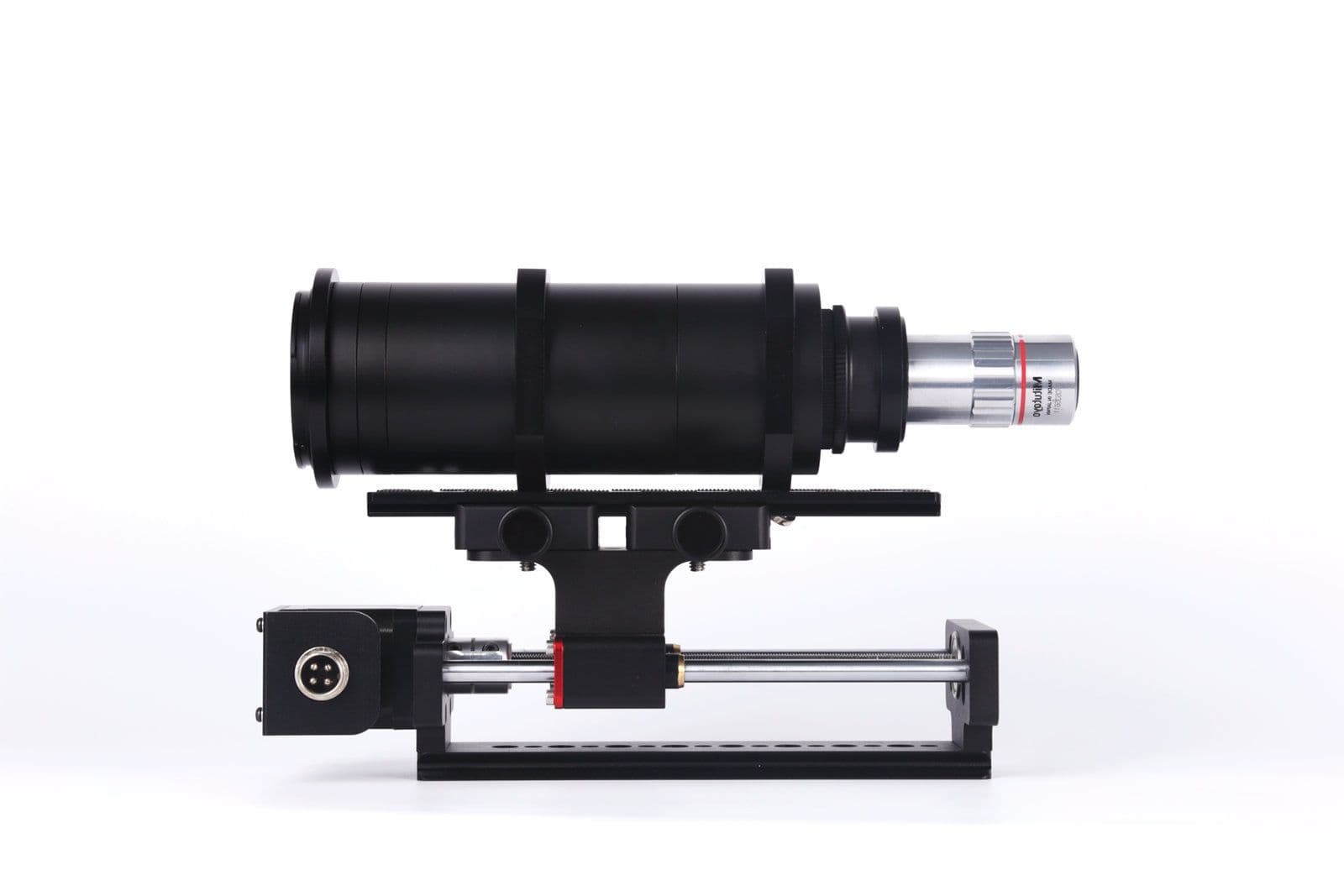

This is a system which allows you to connect a microscope objective to a GFX camera with the utmost stability and alignment.
This tube lens can only be used with a GFX mount. The tube lens features a tool-free locking clamp. The large inner diameter of the tube can accommodate GFX medium format cameras. The objective lens mount of this product includes M26 and RMS thread adapters. It is important to note that only M26 objectives are able to provide a larger imaging area.
The unique raised camera platform of the WeMacro rail is more suitable for the tall body of the GFX.
The objective lens camera and rail are not included in the package.
Two independent quick-release clamp are installed along the central axis to ensure that the direction of the optical axis of the tube lens is consistent with the advancing direction of the rail.

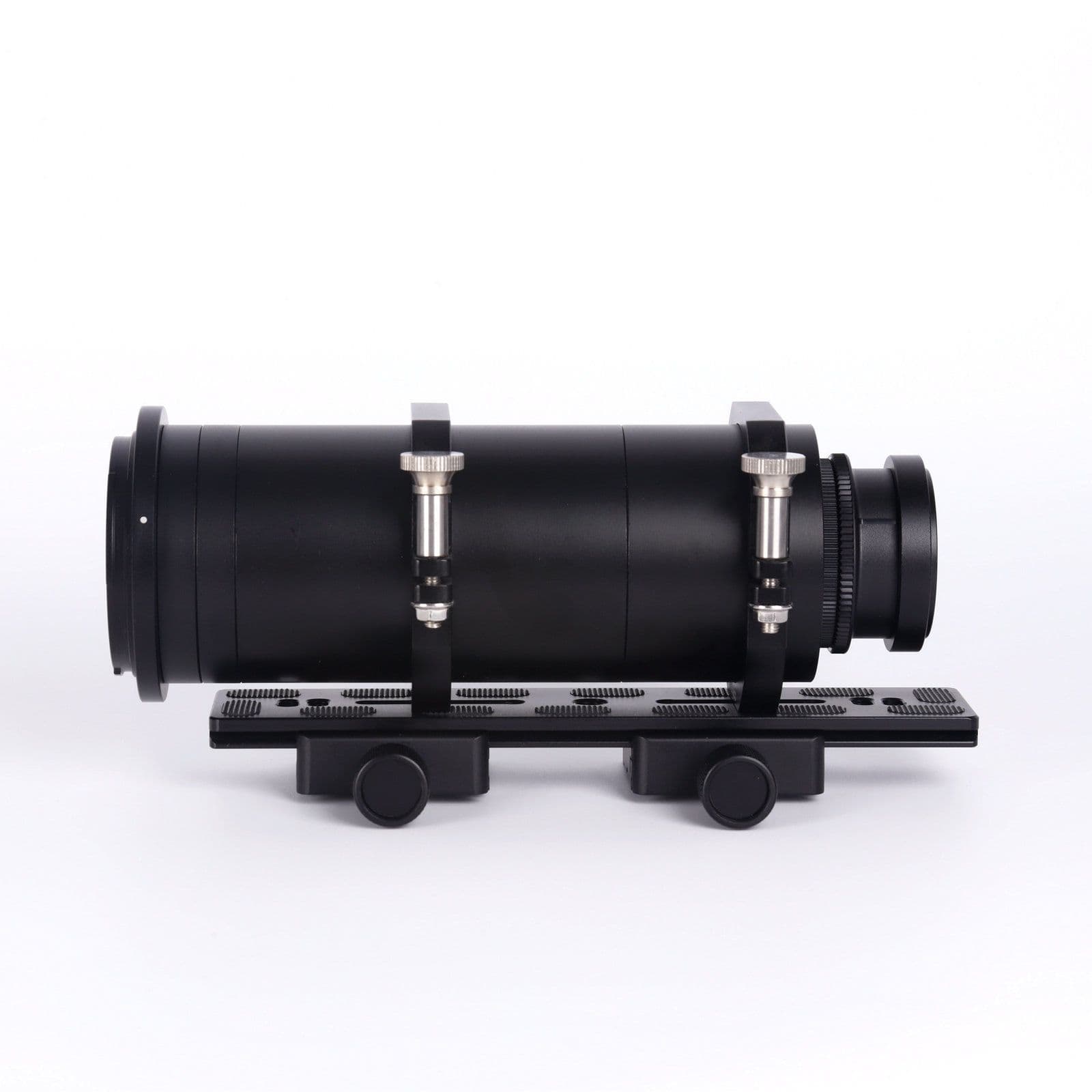

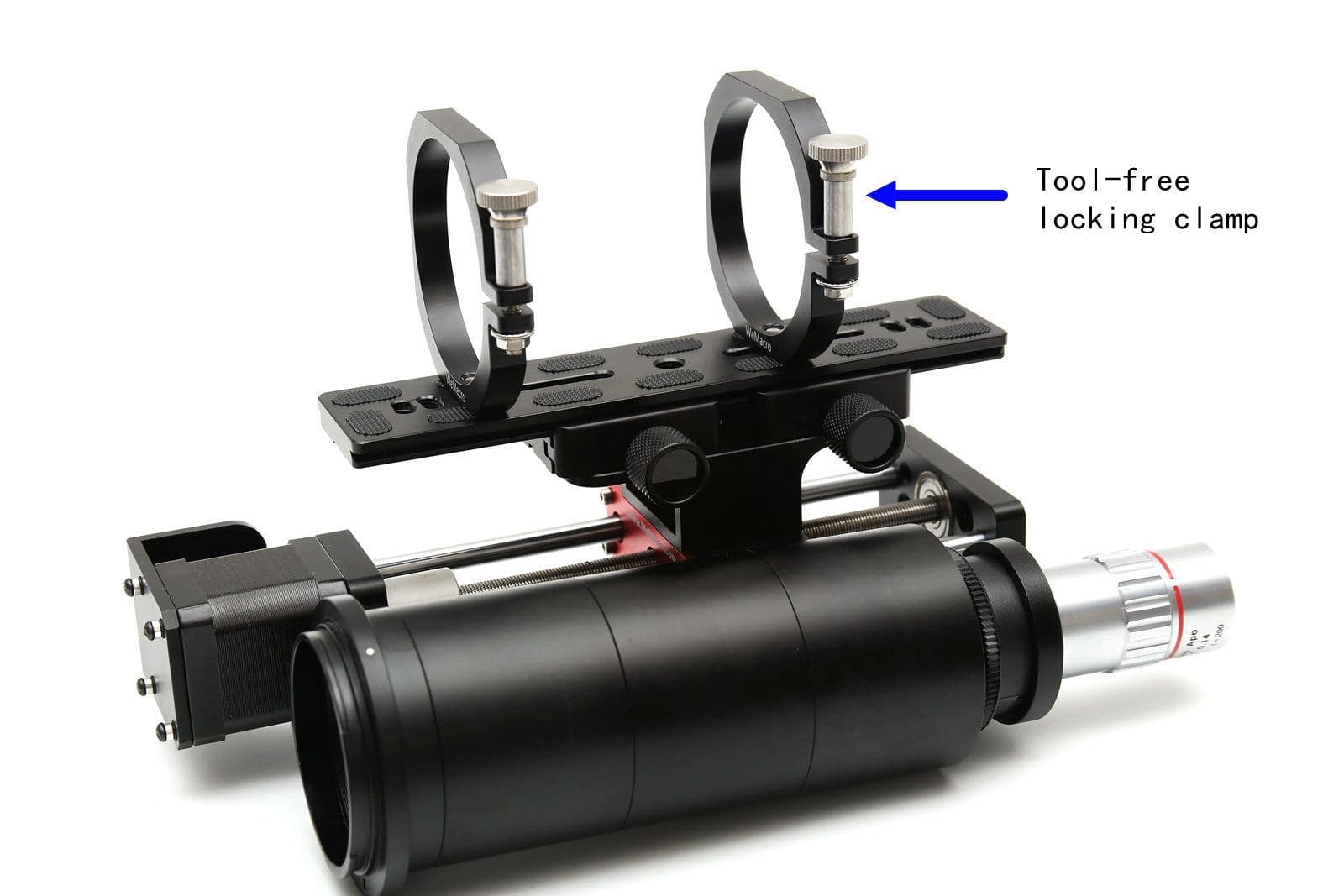

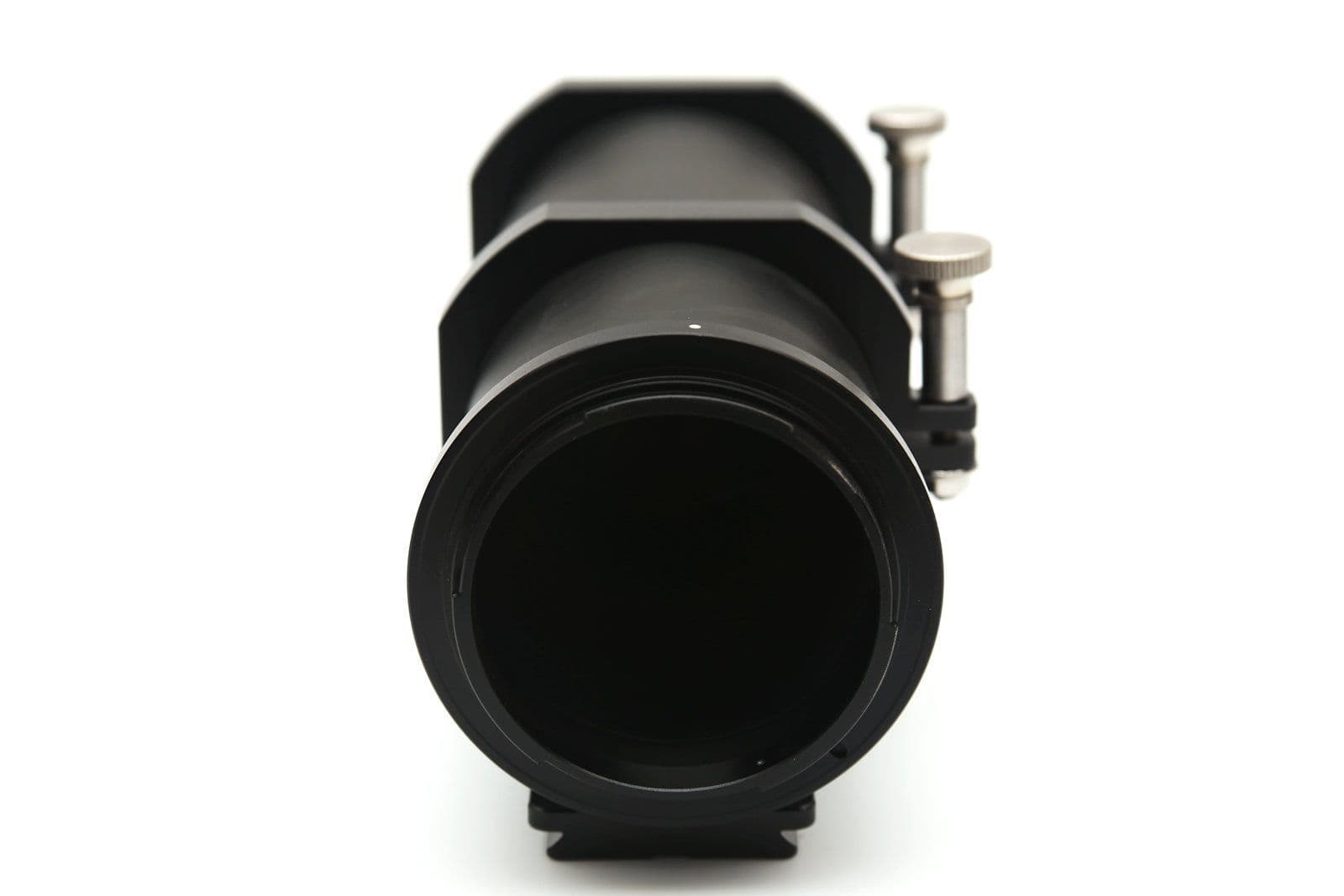

The tool-free locking clamps provide better stability reduce the lens rocking caused by the camera shutter and easy to lock. The 50mm length tube with black velvet inside to reduce internal reflection. The objective lens in below picture is not included.
This lens package contain parts as below
3*50 mm M65 special made tube with black velvet inside
2*10 mm M65 special made tube
2*Tube clamp( tool-free locking )
2*Quick release clamp without plate
2* 1/4 inch screws
1* 65-42 adapter ring
One Raynox reversed-M42 adapter rings pack
One Raynox DCR 150 lens(If option is without raynox 150,this part will be removed in package.)
One piece of M26(Mitutoyo) to M42 (42mm x 1)
One piece of RMS to M42 (42mm x 1)
One piece of Quick release plate 200 mm
One piece of GFX mount
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM1212C |
| Weight | 1kg |
