Single Axis 125 x 125mm Precision Specimen Z Stage

Single Axis 125 x 125mm Precision Specimen Z Stage with Specimen Clip

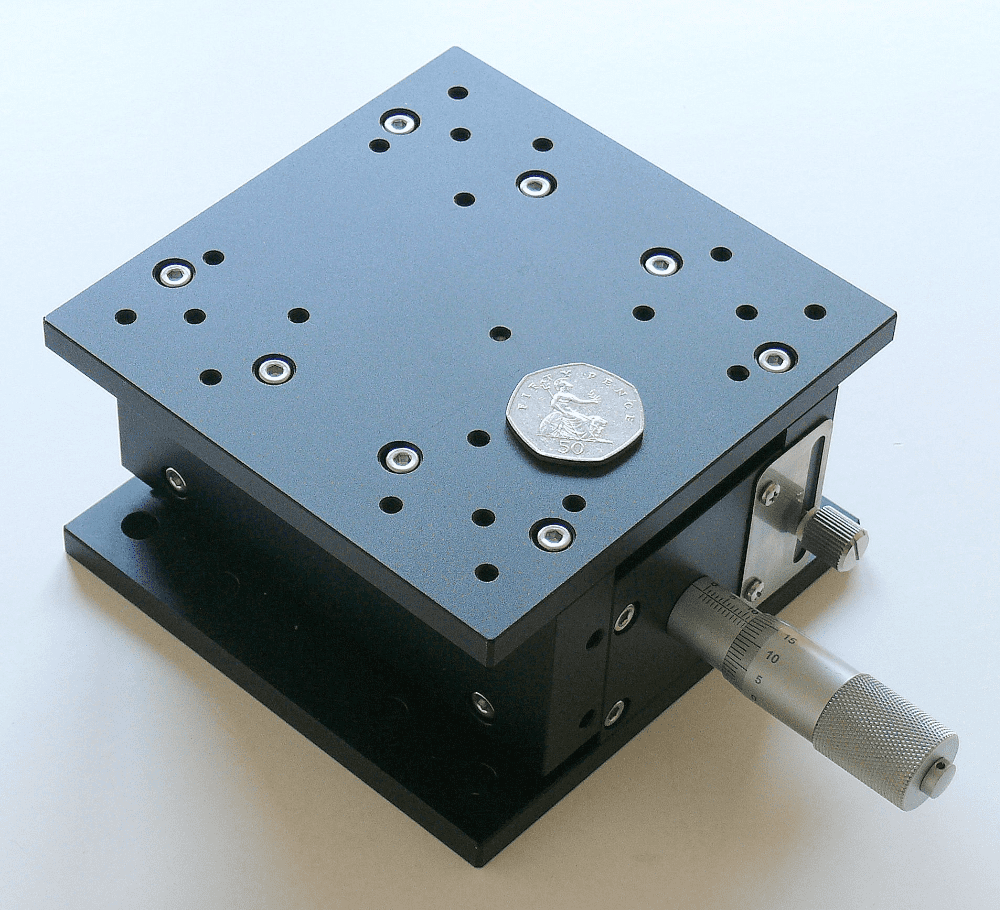

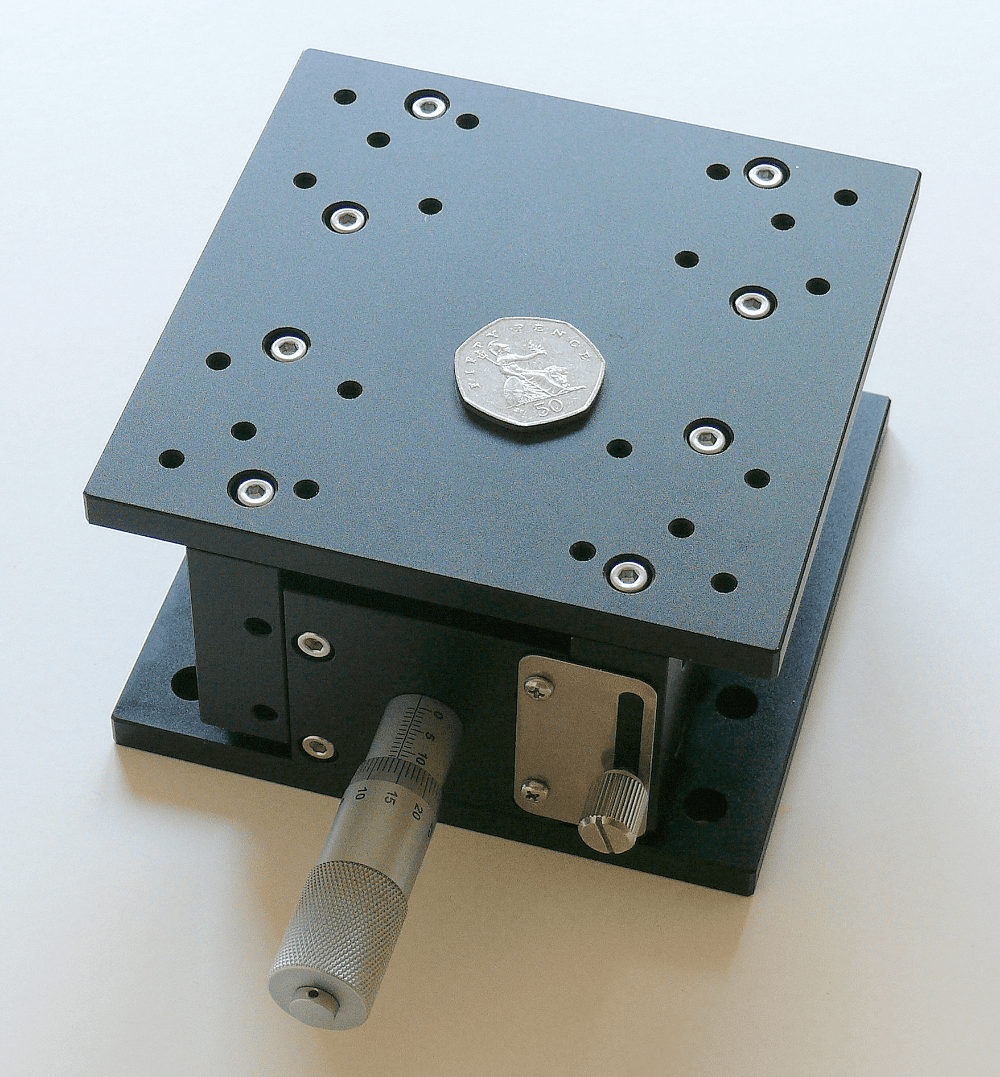

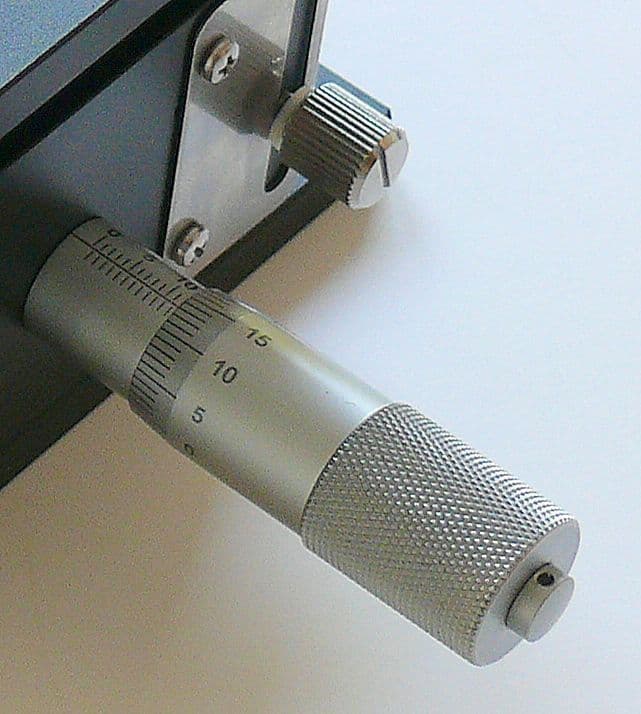

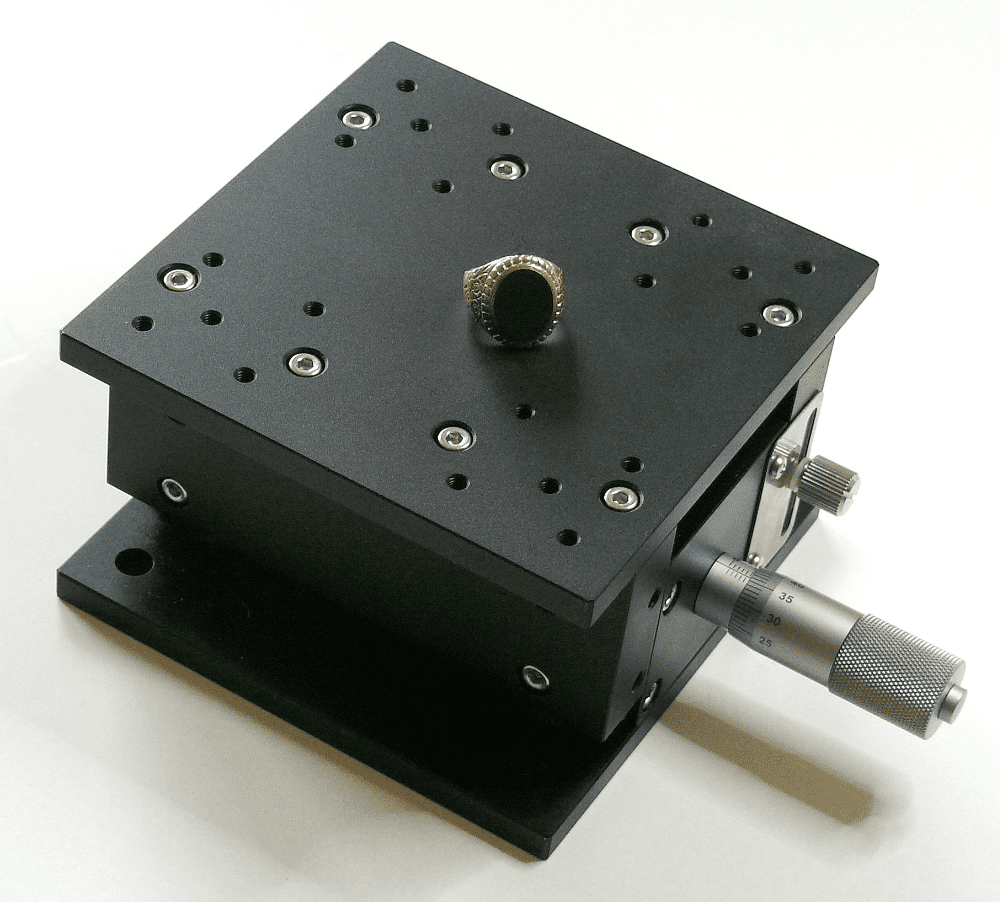

A top quality large size micrometer precision z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder the ideal manual system for gathering a stack of images of subjects at high magnification.  In most cases using it to mount a specimen held in place with the crocodile clip is its most common usage.  It has 10 mm of Z travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  The movement has graduated scales on the micrometer knob so you can make extremely precise interval movements.

Overall Dimensions WDH (mm): 190 x 125 x 65 (shortest)
Stage Size (mm): 125 x 125
Maximum Travel (mm): 10 (Z)
Weight (g): 1960

Stands, specimens or any other illustrative items shown in the pictures shown are not included.  due to our policy of continuous product improvement the precise appearance and specifications may alter slightly over time.
