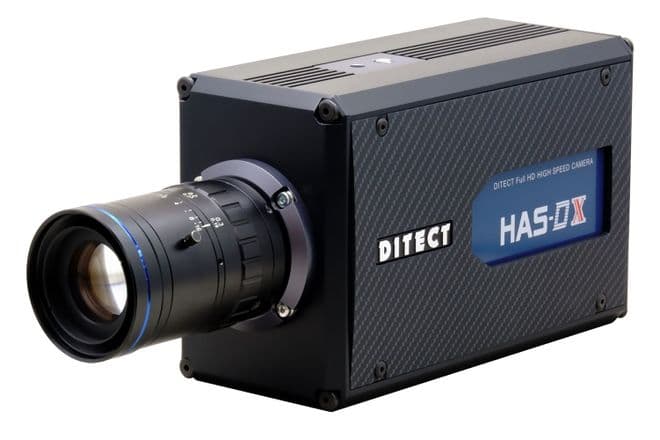

HAS-DX High Speed Camera - Superfast  2000 fps at full HD, C-Mount USB3 . Max 100k fps

Product code: HAS-DX
HAS-DX High Speed Camera - Superfast  2000 fps at full HD
  • Manufactured by Ditect Japan
  • Choice of colour or monochrome cameras (choose monochrome for higher speeds)
  • 2000 FPS at 1920x1080 resolution!
  • Max resolution 1920x1080
  • 16 GB of internal memory
  • Up to 100,000 FPS at 1920x4 resolution
  • C-mount
  • USB 3.0 connection (PC / tablet)
  • Multi-camera connection, synchronisation and control are possible
  • 12V / 20W
  • Size: 82mm x 110mm x 185mm
  • Weight: 1.5 kg
  • Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
  • Large 4/3 inch Sensor

HAS-DX High Speed Camera - Superfast  2000 fps at full HD
Manufactured by Ditect Japan

Summary

  • Choice of colour or monochrome cameras (choose monochrome for higher speeds)
  • 2000 FPS at 1920x1080 resolution!
  • Max resolution 1920x1080
  • 16 GB of internal memory
  • Up to 100,000 FPS at 1920x4 resolution
  • C-mount
  • USB 3.0 connection (PC / tablet)
  • Multi-camera connection, synchronisation and control are possible
  • 12V / 20W
  • Size: 82mm x 110mm x 185mm
  • Weight: 1.5 kg
  • Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
  • Large 4/3 inch Sensor
  • (lens not included, lenses, microscopes and microscope adapters can be supplied)

Description

This high quality Japanese made camera provides a highly flexible system for the capture of events at very high frame rates for playback in slow motion and for image analysis (see analysis software options).

Our flagship product.  The HAS-DX (d-ten) is a high definition digital high speed camera equipped with a new image sensor.

With a resolution of 2 mega pixels, high-speed shooting at 2,000fps is possible.

Laptop PC can also be used by the connection with USB3.0, and it enables the easy operation of high-definition high-speed shooting.

Well suited for all kinds of research / production engineering in behaviour, fluid, sports science, biomechanical, robotics, machine vision, crash test, droplet, microscopy, trouble shooting, and more.

  • Capable of high-speed shooting at 2,000fps with full HD

  • High-speed interface enables live video confirmation without delay

  • Record at short intervals with auto save trigger or random trigger

  • Play back of slow motion video is available immediately after recording

  • Supports multi-camera synchronized shooting with external synchronization and external trigger

  • Ideal for stereo 3D motion analysis, 3D flow measurement with 3DPTV, and stereo PIV

  • Standard control software makes multi-camera video confirmation and control easy

  • With a clear GUI that is conscious of tablet PCs, highly flexible field operation is possible

Frame rate and format
Max resolution = 1920x1080
Max fps at max resolution = 2,000fps
Max fps = 100,000 fps at 1920x4
(See Frames per Second Table Image)

Camera control software
Camera control software for PC is supplied free of charge with every camera (see software screenshot).  Functions include live view / rotation / grid display / gain / gamma / bit shift / white balance / pixel interpolation

Example Applications

Production engineering
Press machine/printing machine behaviour, failure cause analysis

Research and development
Crash test, structure collapse, vehicle movement

Image analysis
Any PIV/Motion capture experiment of fast phenomena

Microscopy
Microorganism/sperm/metal stock behaviour

product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
Max Frame Rate (frames/sec) 100000
Max Resolution (pixels) 1920x1080
Synchronous Multi-Camera Support Yes
Min. Shutter Speed (microsecs) 1
Low Light Suitable Yes
Sensitivity 20V/lx.s (mono) 6V/lx.s (colour)
Built-in Fast Memory (GB) 16
Trigger Function TTL/Contact signal
Sensor Size (inch) 4/3
Mount C-Mount
Interface USB3
Brand Ditect
Condition New
Product Code HAS-DX
Weight 1.5kg
