High Speed Camera HAS-D71 C-Mount USB3 Light Sensitive and Fast. Max 120k fps

Product code: HAS-D71

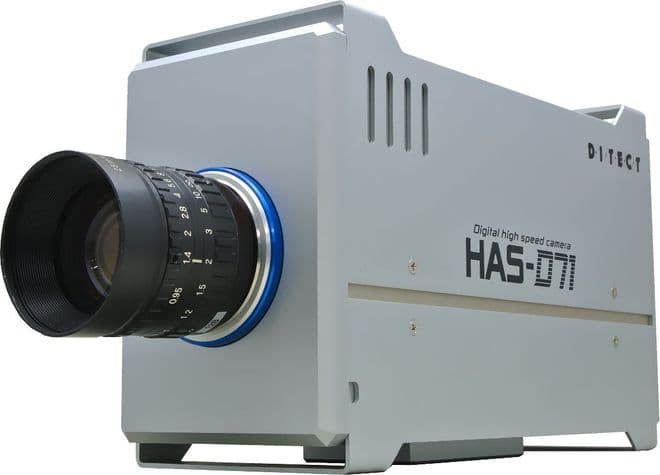

HAS-D71 High Speed Camera - Light Sensitive and Fast
  • Manufactured by Ditect Japan
  • 8,000 FPS at 640 x 480  resolution
  • Monochrome or colour
  • 16 GB of internal memory
  • Up to 120,000 FPS at 640 x 12 resolution
  • C-mount, minimum 1 micro sec exposure time
  • USB 3.0 connection (PC / tablet)
  • Multi-camera connection, synchronisation and control are possible
  • 12V / 20W with AC
  • Optional battery
  • Size: 73 mm x 118 mm x 187.4 mm
  • Weight: 1.2 kg
  • Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
  • 1/1.8 inch sensor

HAS-D71 High Speed Camera - Light Sensitive and Fast
Manufactured by Ditect Japan

Summary

  • 8,000 FPS at 640 x 480  resolution
  • Monochrome or colour
  • 16 GB of internal memory
  • Up to 120,000 FPS at 640 x 12 resolution
  • C-mount, minimum 1 micro sec exposure time
  • USB 3.0 connection (PC / tablet)
  • Multi-camera connection, synchronisation and control are possible
  • 12V / 20W with AC
  • Optional battery
  • Size: 73 mm x 118 mm x 187.4 mm
  • Weight: 1.2 kg
  • Supplied System includes: Camera, software, USB 3.0 cable, AC adapter, trigger & sync cables
  • 1/1.8 inch sensor
  • (lens not included, lenses, microscopes and microscope adapters can be supplied)

Description

This high quality Japanese made camera provides a highly flexible system for the capture of events at very high frame rates for playback in slow motion and for image analysis (see analysis software options).

The camera is most frequently used at 8,000fps resolution incorporating a new Japanese, high sensitivity image sensor which is very helpful in in low light conditions.

Max 120,000fps. Colour/Mono, 1/1.8 inch sensor, C mount, Minimum 1μsec shutter, Memory size 16GB, USB3.0 fast interface.

  • Perfectly suited to low light conditions
  • High speed USB3.0 interface providing smooth continuous access
  • Multi-camera settings available via external synchronisation and external triggering
  • Perfectly suited to stereo-PIV and stereo-3D experiments
  • Easy to operate as it is provided with recording and viewing software
  • PC- less recording is possible with hot swap function

Frame rate and format
Max resolution = 640x480
Max fps at max resolution = 8,000fps
Max fps = 120,000fps at 640x12
(See Frames per Second Table Image)

Camera control software
Camera control software for PC is supplied free of charge with every camera (see software screenshot).  Functions include live view / rotation / grid display / gain / gamma / bit shift / white balance / pixel interpolation

Hot swap recording
This very useful function permits PC-less recording by means of the 'hot swap' recoding function.

You may remove the USB cable after standby and go on to a cable less trigger recording (TTL or switch trigger required).  Then insert the USB cable back into your PC and preview/save the images when you finish recording.

Example Applications

Production engineering
Printer toner, ink-jet droplet, paint nozzle wire bonding, chip mounter, engine behaviour, combustion chamber

Research and development
Concrete chips, crash test, turbine rotation, cavitation flow

Image analysis
Any PIV/Motion capture experiment of fast phenomena

Microscopy
Microfluidics, Micro-channel, microbubbles, blood flow, protein behaviour

product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
Max Frame Rate (frames/sec) 120000
Max Resolution (pixels) 640x480
Synchronous Multi-Camera Support Yes
Low Light Suitable Yes
Sensitivity 38V/lx*s (mono) 20V/lx*s (colour)
Built-in Fast Memory (GB) 16
Min. Shutter Speed (microsecs) 1
Trigger Function Start, End, Variable, Random (TTL & switch)
Sensor Size (inch) 1/1.8
Mount C-Mount
Country of Origin Japan
Size (mm) 73x118x187.4
Brand Ditect
Condition New
Product Code HAS-D71
Weight 1.5kg
