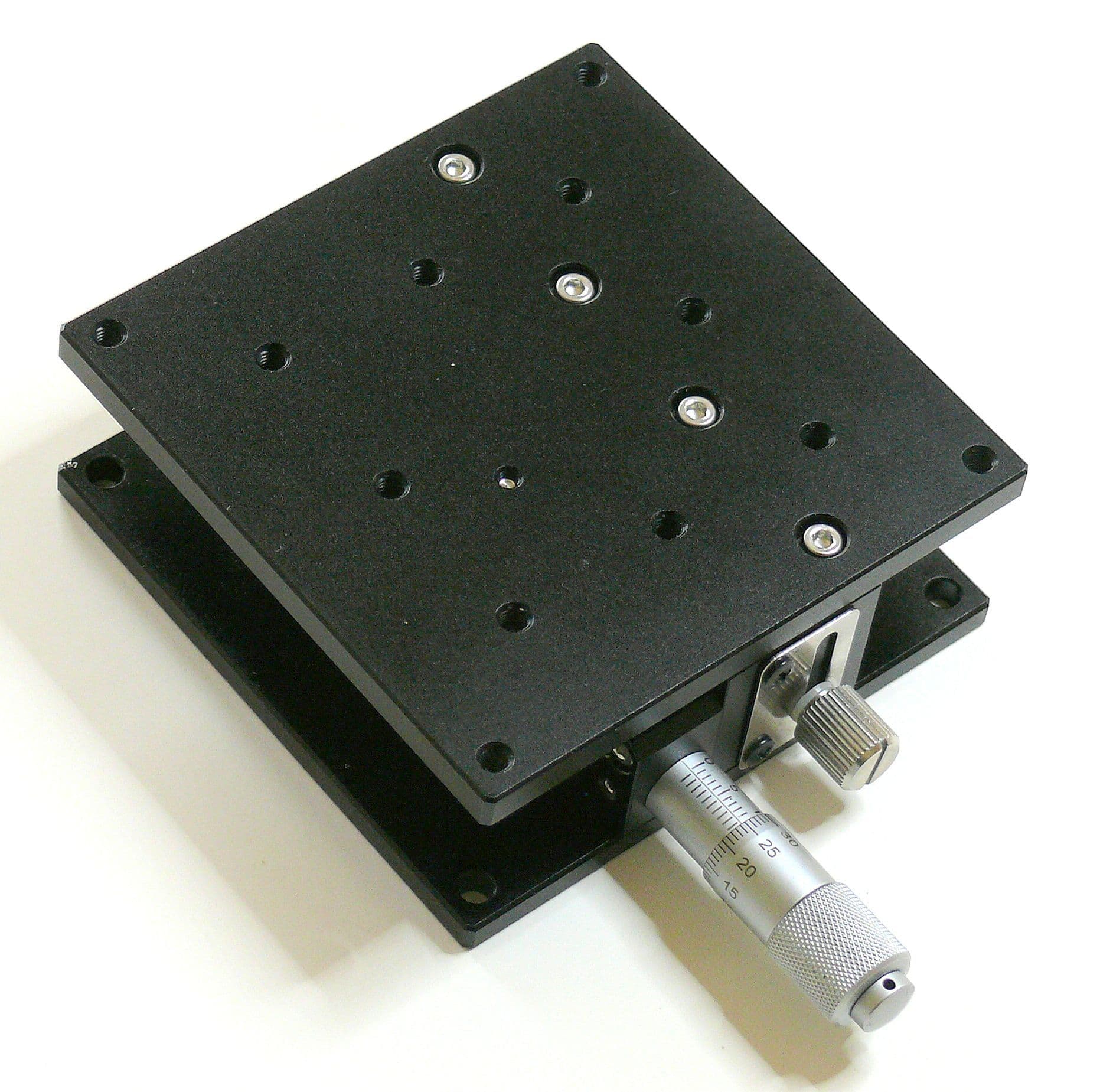

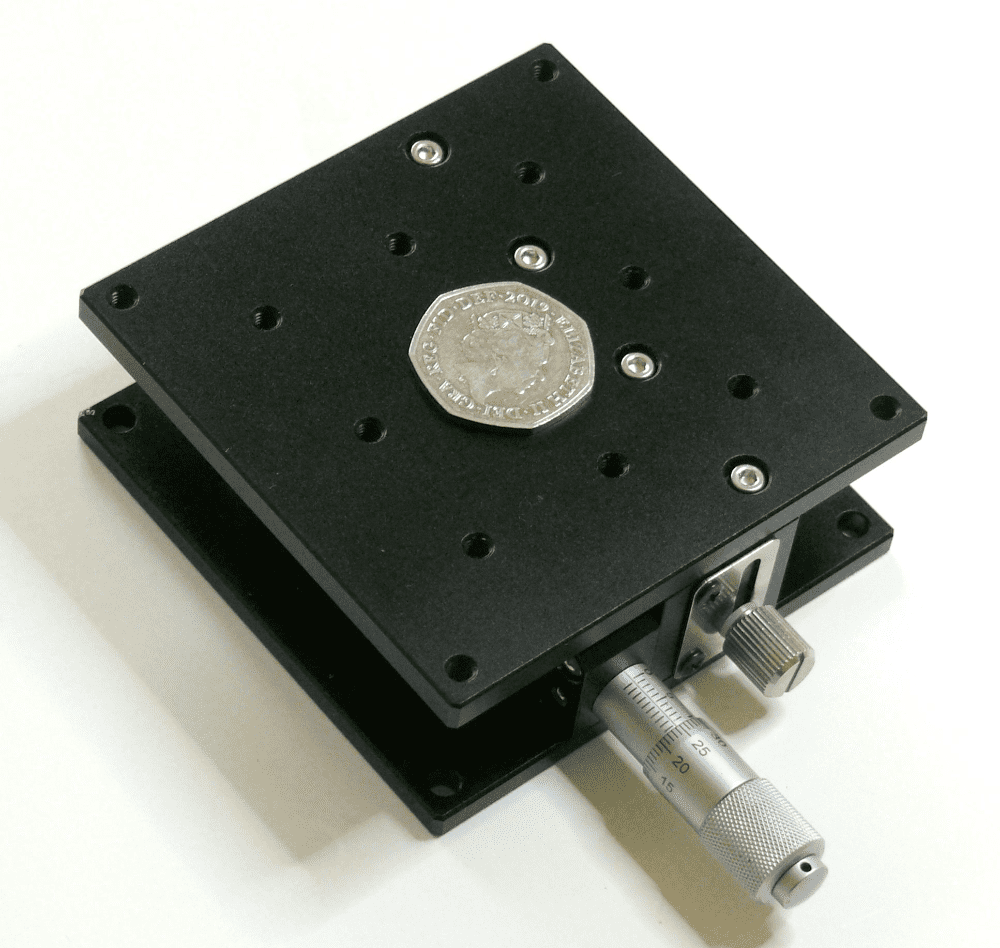

Single Axis 90 x 90 Z Height Adjustable Precision Stage with Specimen Clip

Single Axis 90 x 90  Z Height Adjustable  Precision Stage with Specimen Clip

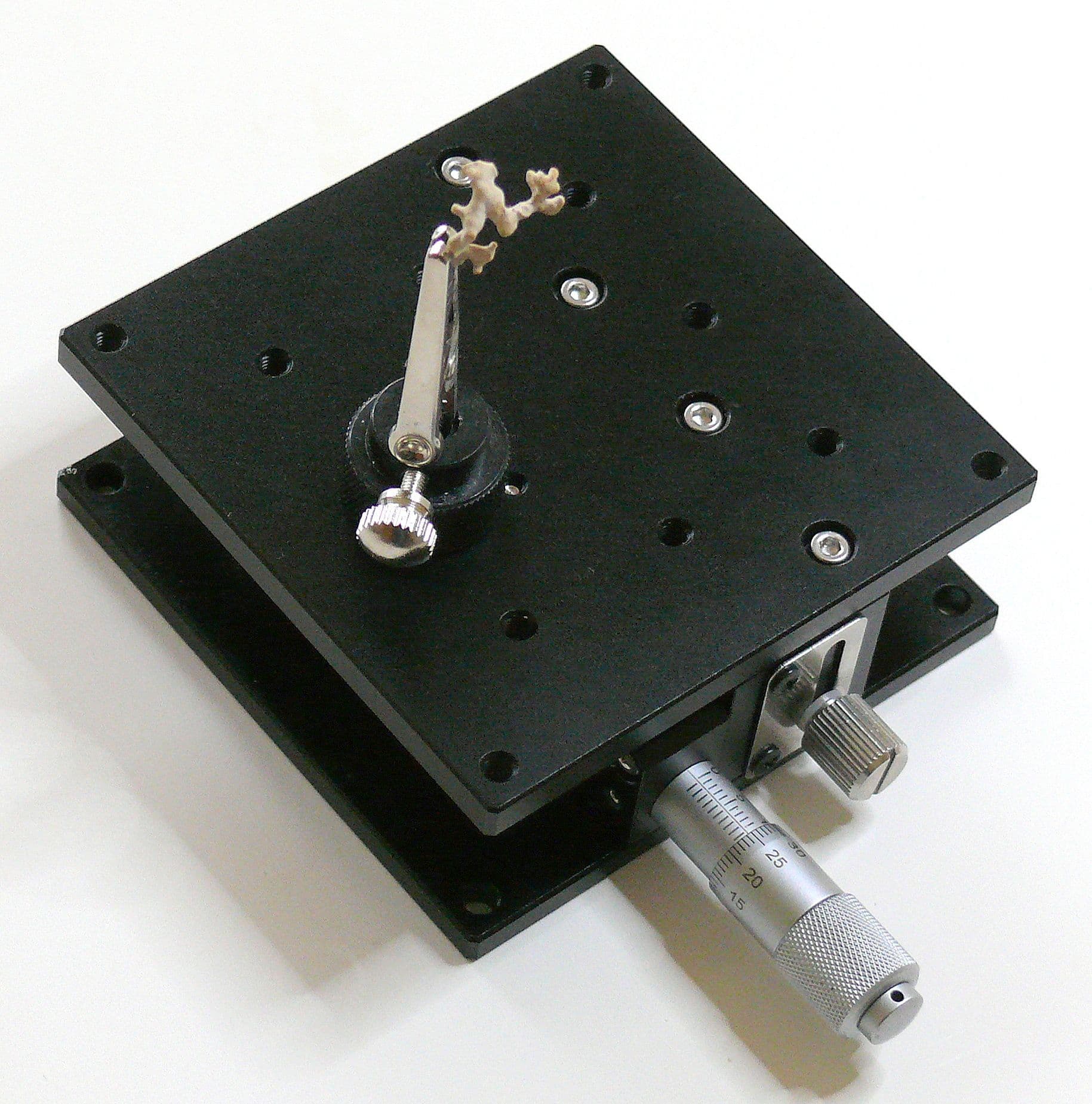

A top quality micrometer precision Z-height adjustable stage, great for fine focussing and focus stack acquisition that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen with the supplied rotatable crocodile clip is its most common usage.  A knob control the Z movement of up to 10mm.  The movement has a graduated scale on the micrometer knobs so you can make extremely precise interval movements.

The stage can be mounted onto other XY stages to create a 3 axis movement system.

Overall Dimensions WDH (mm): 130 x 90 x 35 (shortest and XY retracted)
Stage Size (mm): 90 x 90
Maximum Travel Z (mm): 10
Weight (g): 460

Stands, specimens or any other illustrative items shown in the pictures shown are not included.  Due to our policy of continuous product improvement the precise appearance and specifications may alter slightly over time.
