3 Axis 125 x 125mm XYZ Precision Stage with Specimen Clip

3 Axis 125 x 125mm XYZ  Precision Stage with Specimen Clip

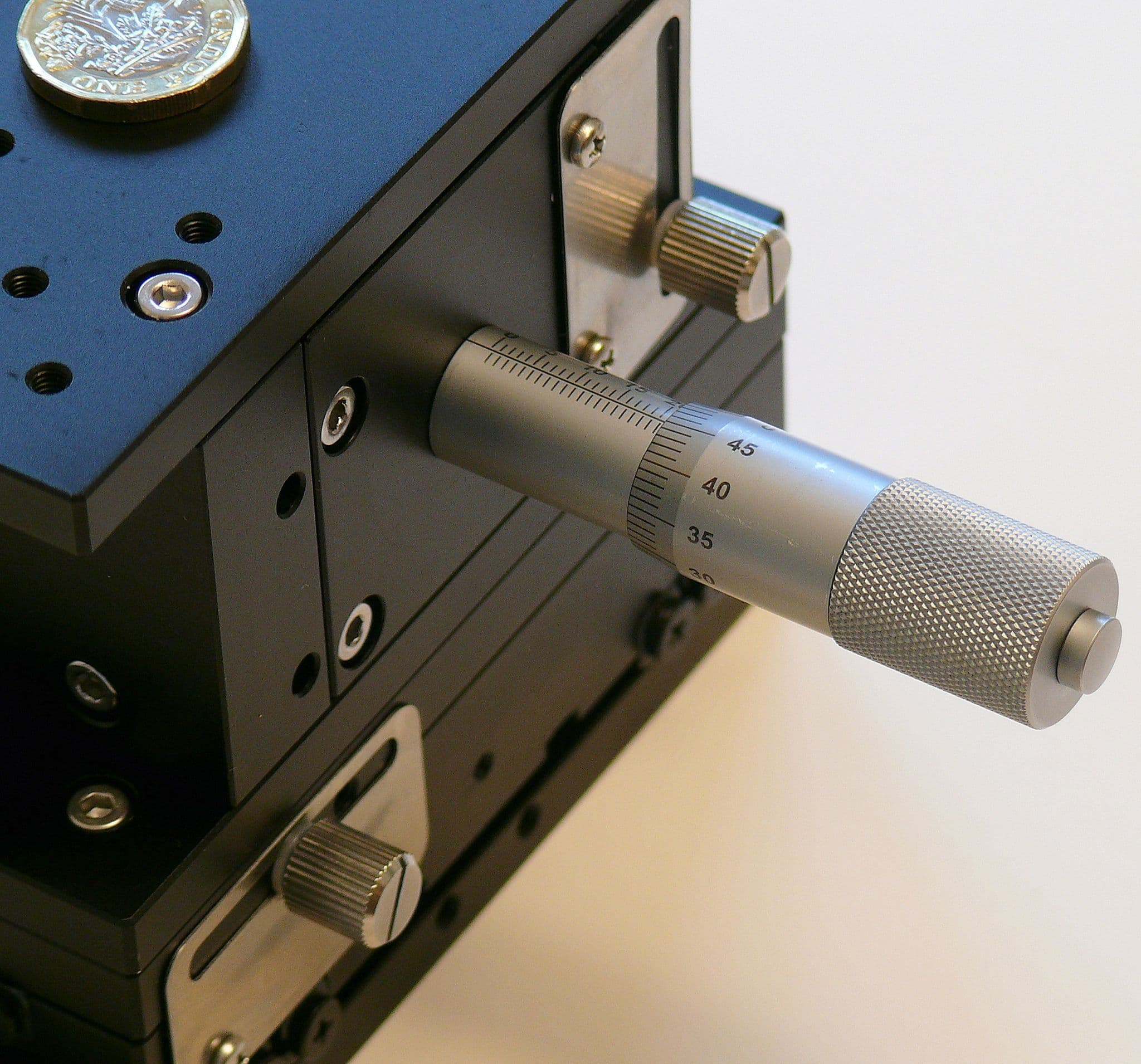

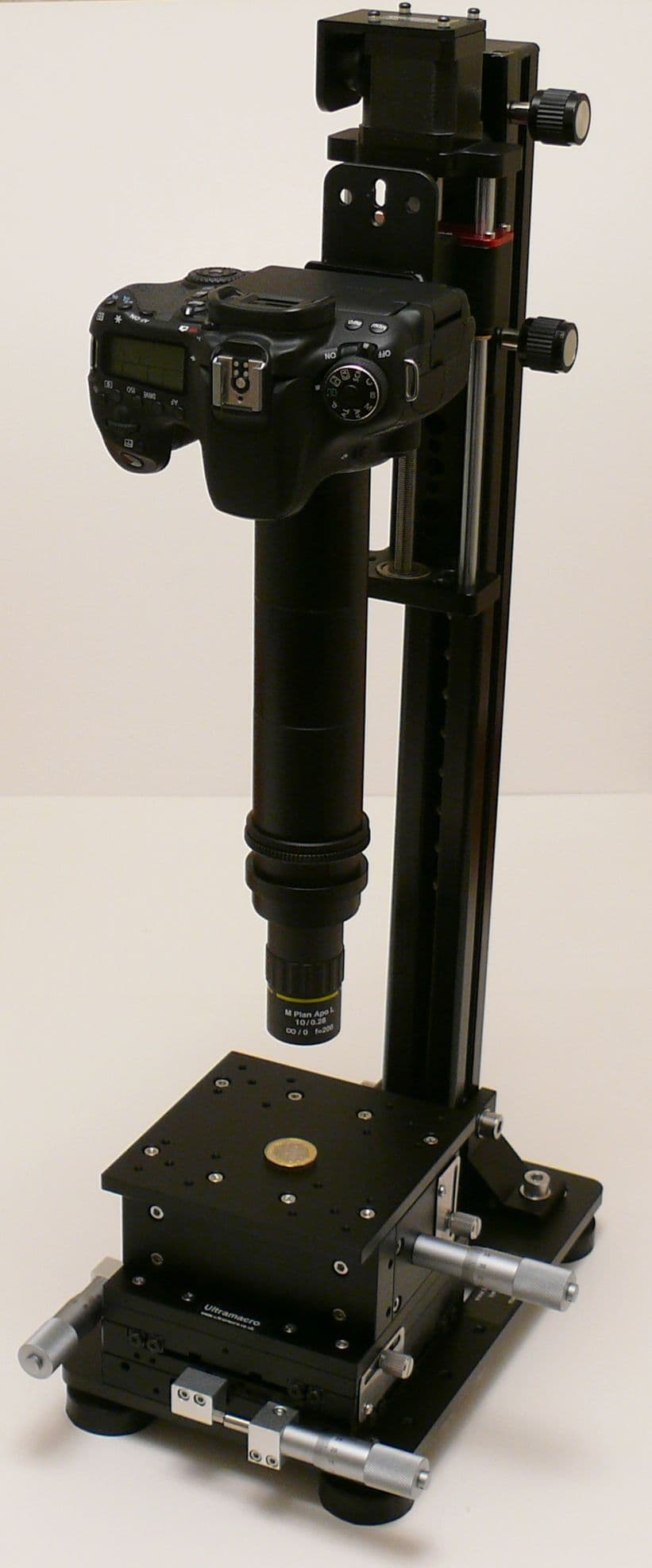

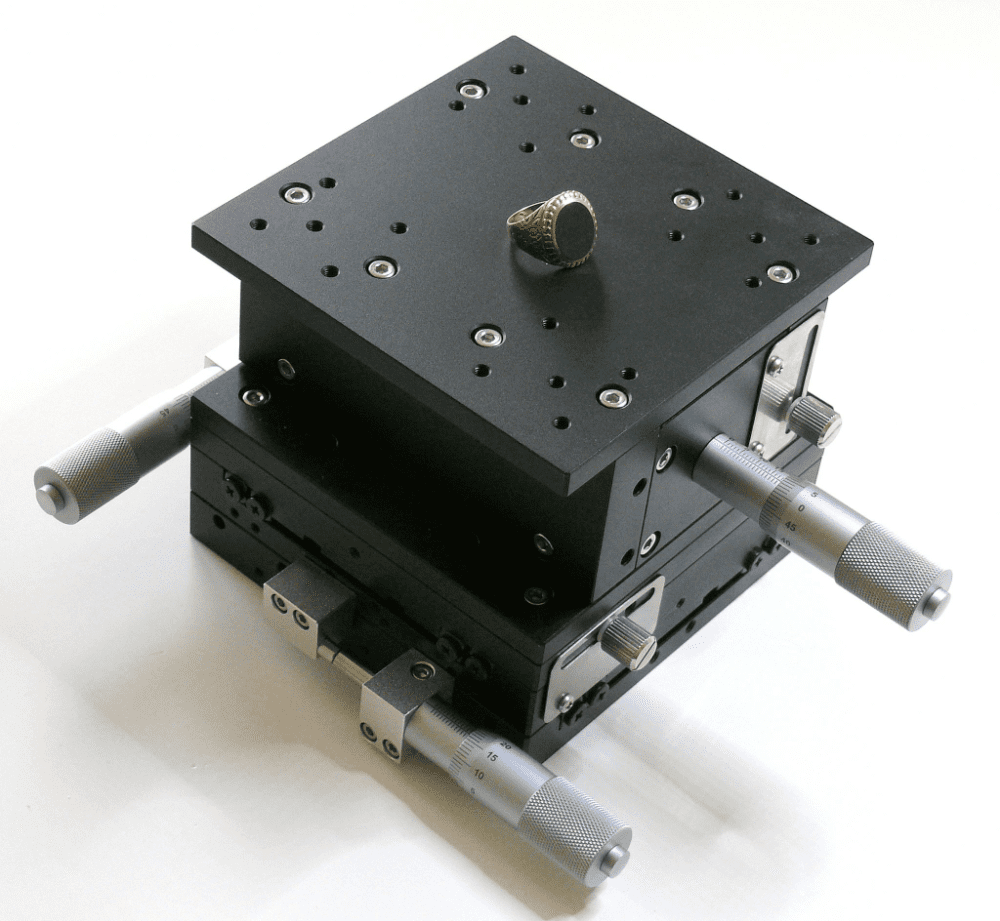

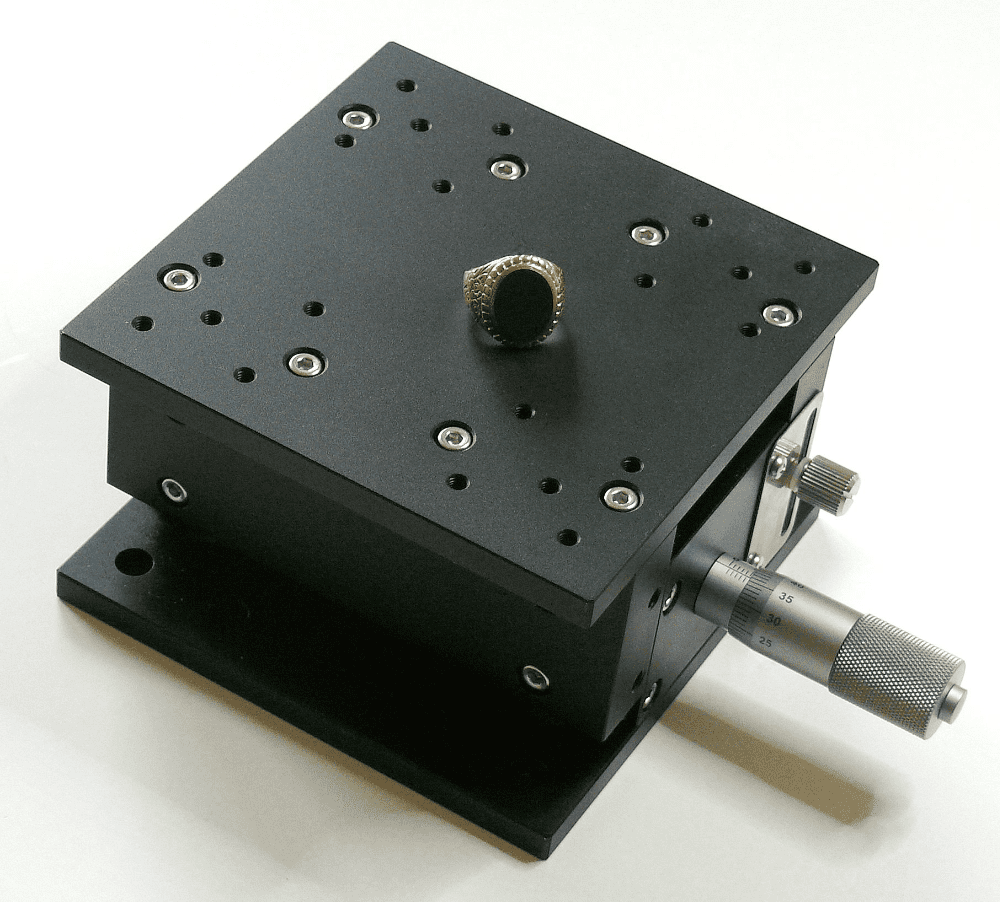

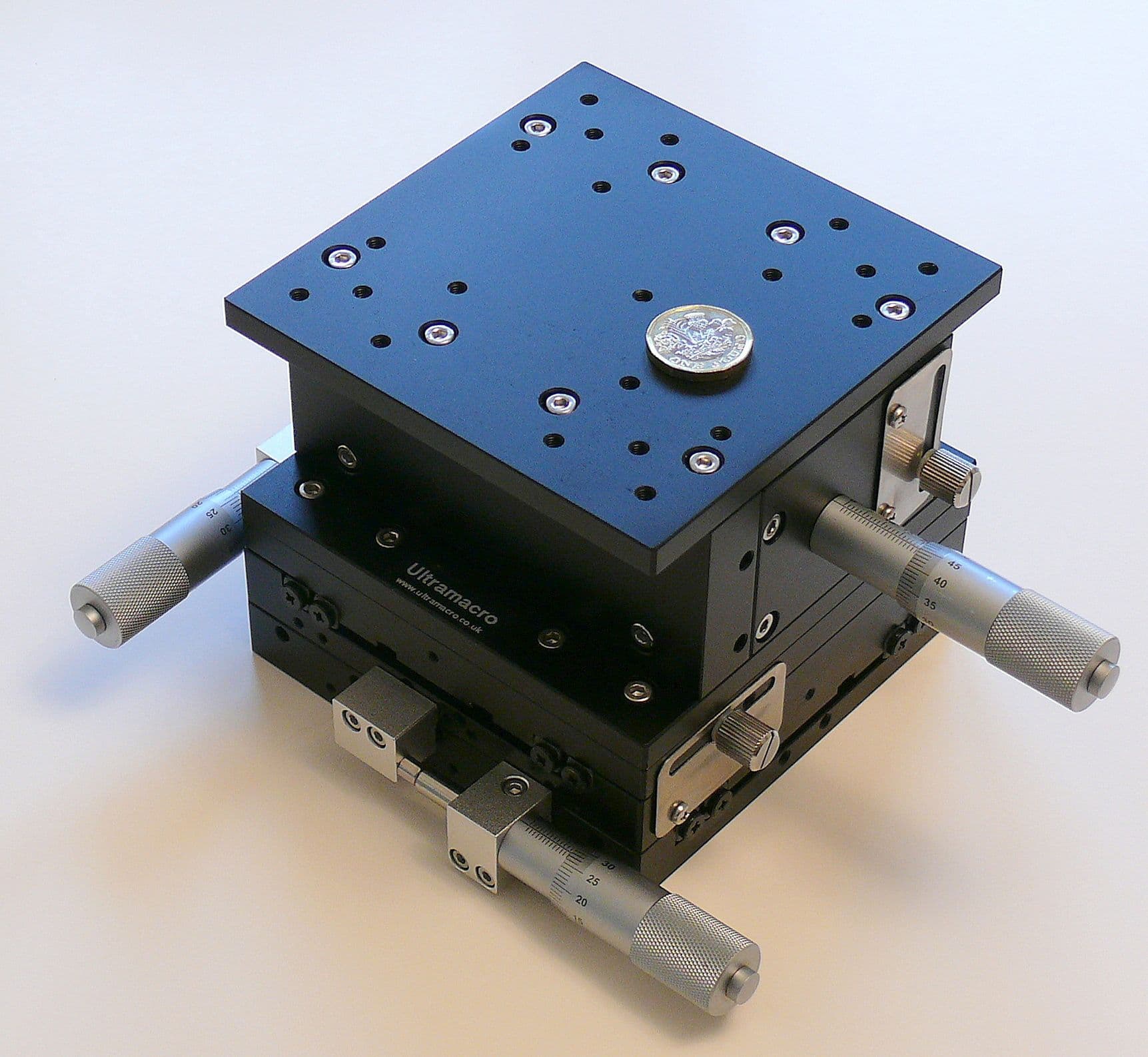

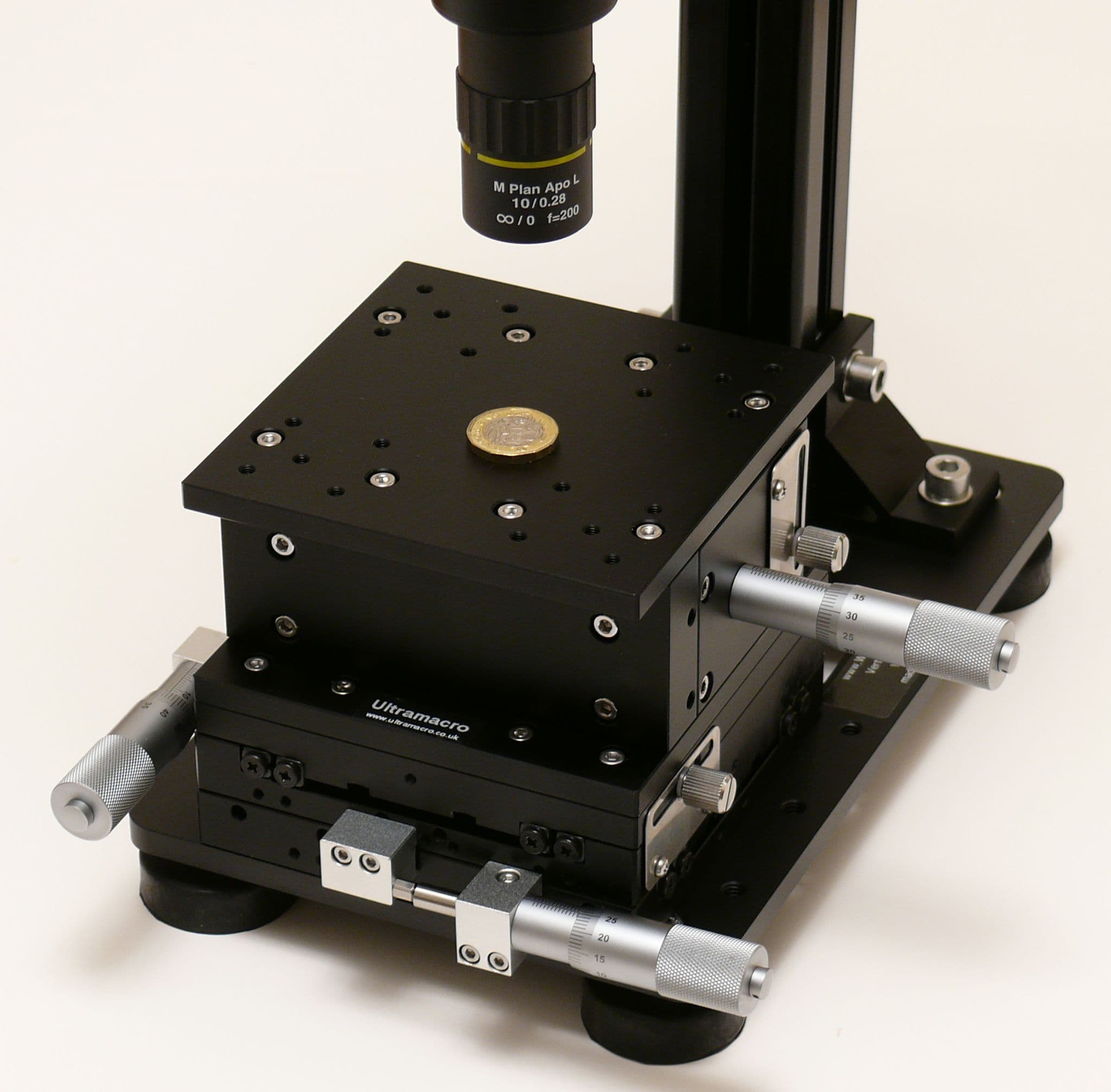

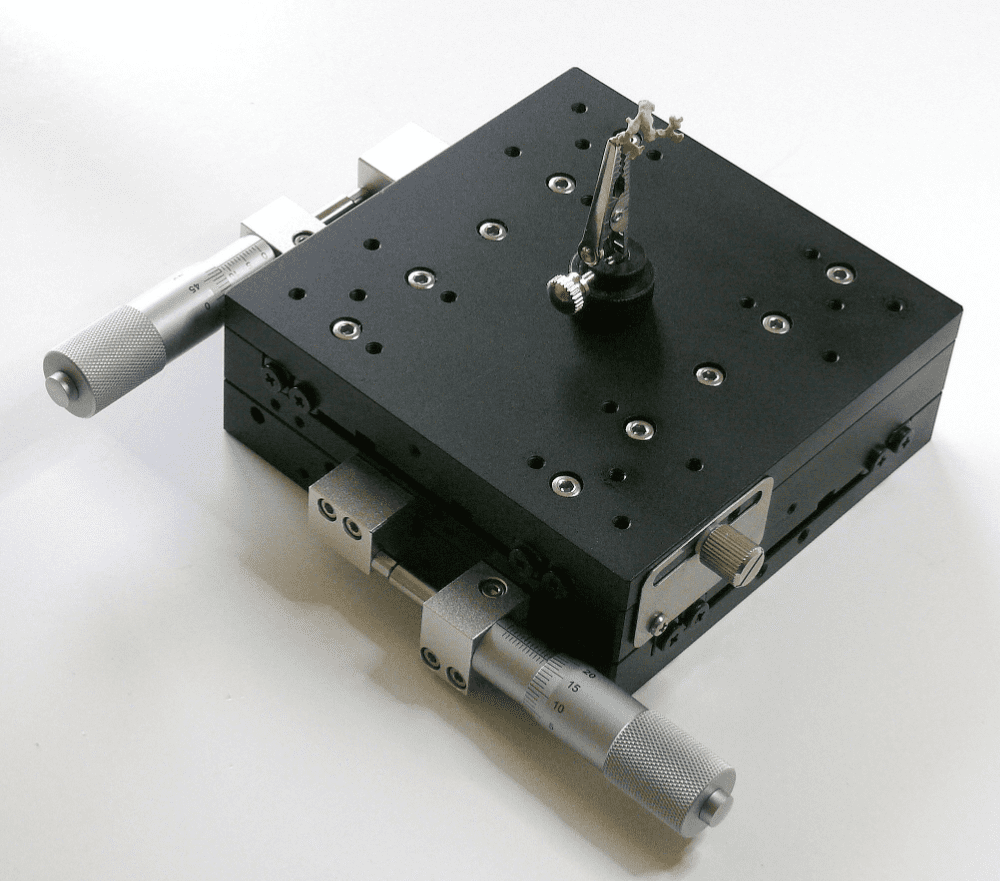

A top quality large micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen using the supplied rotatable crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Also there are similar knobs to control the X and Y movement of up to 25mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.

Overall Dimensions WDH (mm): 170 x 210 x 110 (shortest and XY retracted)
Stage Size (mm): 125 x 125
Maximum Travel XYZ (mm): 12.5-25 in X and Y also 10 in Z
Weight (g): 4,300

Stands, specimens or any other illustrative items shown in the pictures shown are not included.  due to our policy of continuous product improvement the precise appearance and specifications may alter slightly over time.
