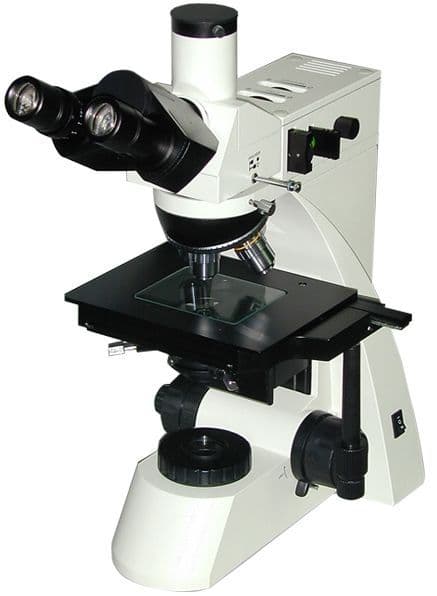

UM1122B Research; Routine Materials Upright Trinocular Microscope
Product code:
UM1122B
A high quality materials microscope equipped with a trinocular head ready for the attachment of a digital camera
£1,594.99
£1,913.99 (inc. VAT)
A high quality materials microscope equipped with a trinocular head ready for the attachment of a digital camera. This microscope includes a full set of high quality plan achromatic materials objectives on a modern reversed objective turret. Specimens can be placed on the mechanical stage with ergonomically positioned controls for XY stage and focus control.
The focussing tension can be adjusted and a focus lock protects the objectives from damage. Illumination is provided from an integral reflected light illuminator with a LED/Hal lamp with adjustable intensity, field and aperture diaphragms, polariser and set of Y, G, B and diffusion filters.
Transmitted light is from a LED/hal lamp with adjustable intensity and field diaphragm for koehler illumination, projected through an adjustable aperture condenser on a rack and pinion with a blue and diffusion filters supplied. This microscope is built on Ultramacro's most popular and highly robust L3000 series elegant microscope frame which provides high stability and a durable platform suitable for the most demanding of applications.
Options include a range of camera adapters, digital cameras, image analysis software, additional objectives and eyepieces.
The focussing tension can be adjusted and a focus lock protects the objectives from damage. Illumination is provided from an integral reflected light illuminator with a LED/Hal lamp with adjustable intensity, field and aperture diaphragms, polariser and set of Y, G, B and diffusion filters.
Transmitted light is from a LED/hal lamp with adjustable intensity and field diaphragm for koehler illumination, projected through an adjustable aperture condenser on a rack and pinion with a blue and diffusion filters supplied. This microscope is built on Ultramacro's most popular and highly robust L3000 series elegant microscope frame which provides high stability and a durable platform suitable for the most demanding of applications.
Options include a range of camera adapters, digital cameras, image analysis software, additional objectives and eyepieces.
Additional product information
| Brand and ID Number | Ultramacro UM1122B |
| Eyepieces and Objectives | Pair of 10X Widefield Eyepieces and 4 Plan Achromatic Objectives, 5X, 10X, 20X, & 50X |
| Head | Trinocular Head with interpupillary distance adjustment |
| Stand & Focus Mechanism | Large Stable Stand, with Ergonomic Coaxial Coarse/Fine Focus |
| Stage and Condenser | Large Mechanical Stage |
| Illumination | Adjustable Intensity Reflected and Transmitted Light |
Customer reviews
| Brand | Ultramacro |
| Condition | New |
| Product Code | UM1122B |
| Weight | 15kg |
