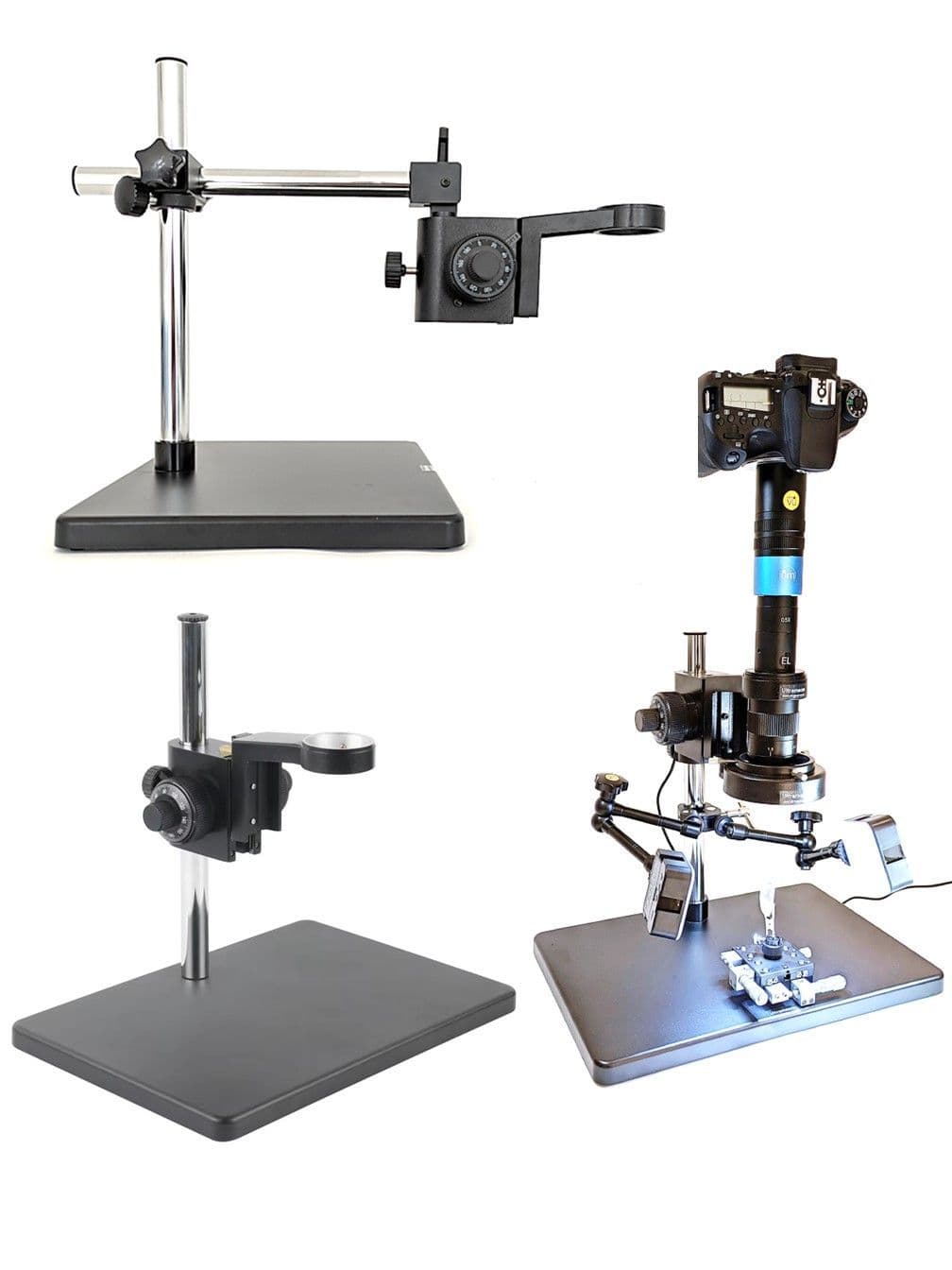

M-Pro Series Pillar & Boom Arm Stands

Ultramacro's M-Pro series of pillar stands and boom arm long reach stands together with a choice of lens holders (we call them focussing rings) are ideal for any high magnification photography and perfect for use with our ultraVU high magnification lenses, monozoom and stereo microscopes.

VIDEOS & BROCHURE
The stand Datasheet Diagram, Videos where the stands are frequently featured and  the ultraVU zoom lens brochure can be viewed on our DOWNLOADS PAGE

Download our stands datasheet here for more information on our entire range of stands:

Ultramacro's Stands Full Range Datasheet

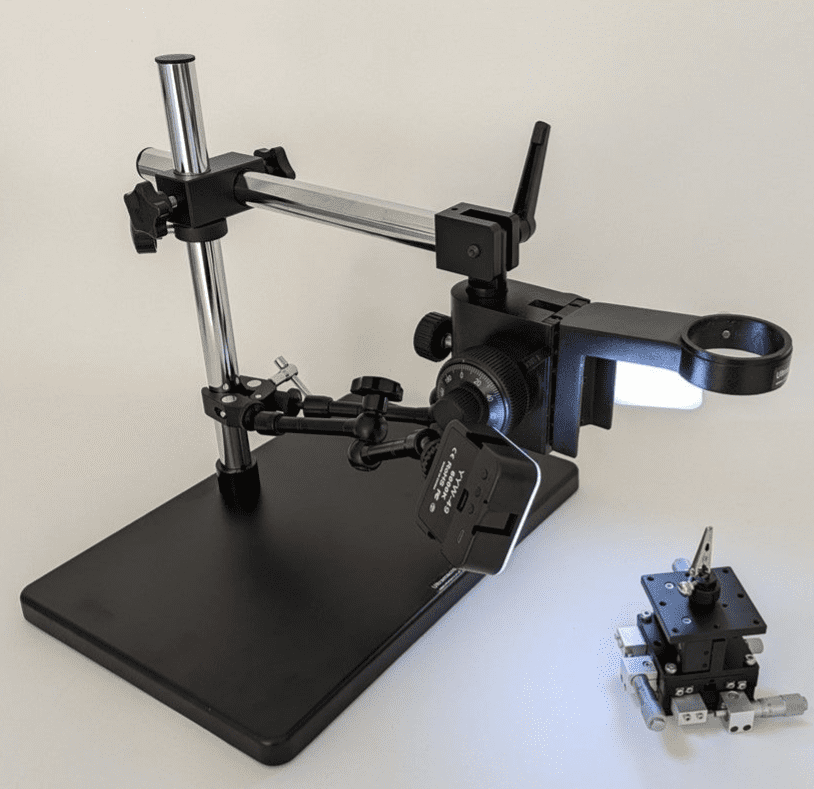

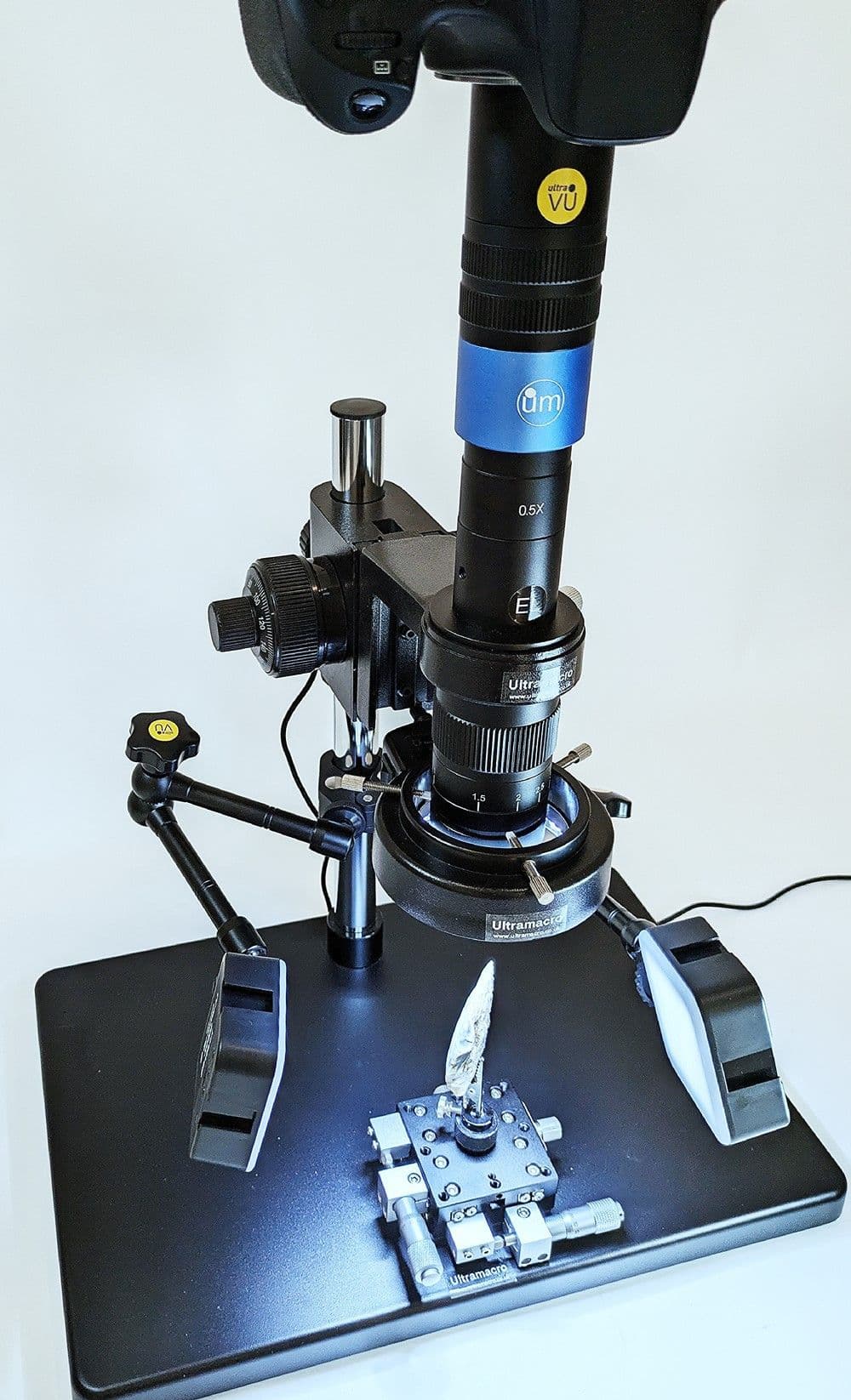

Many of the pictures show the stands in use with lenses, lighting and specimen stages which are optional extras.

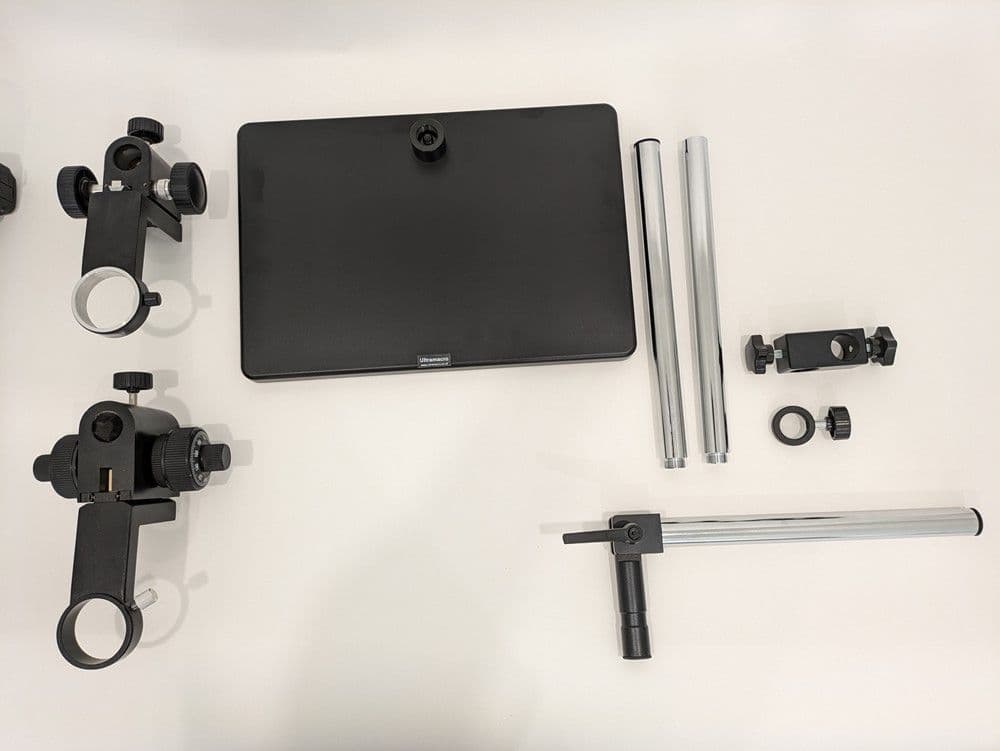

Each M-Pro stand typically comprises of:

• A substantial black base 380mmW x 260mmD (part UM7003B)
• Select the Stand Type:

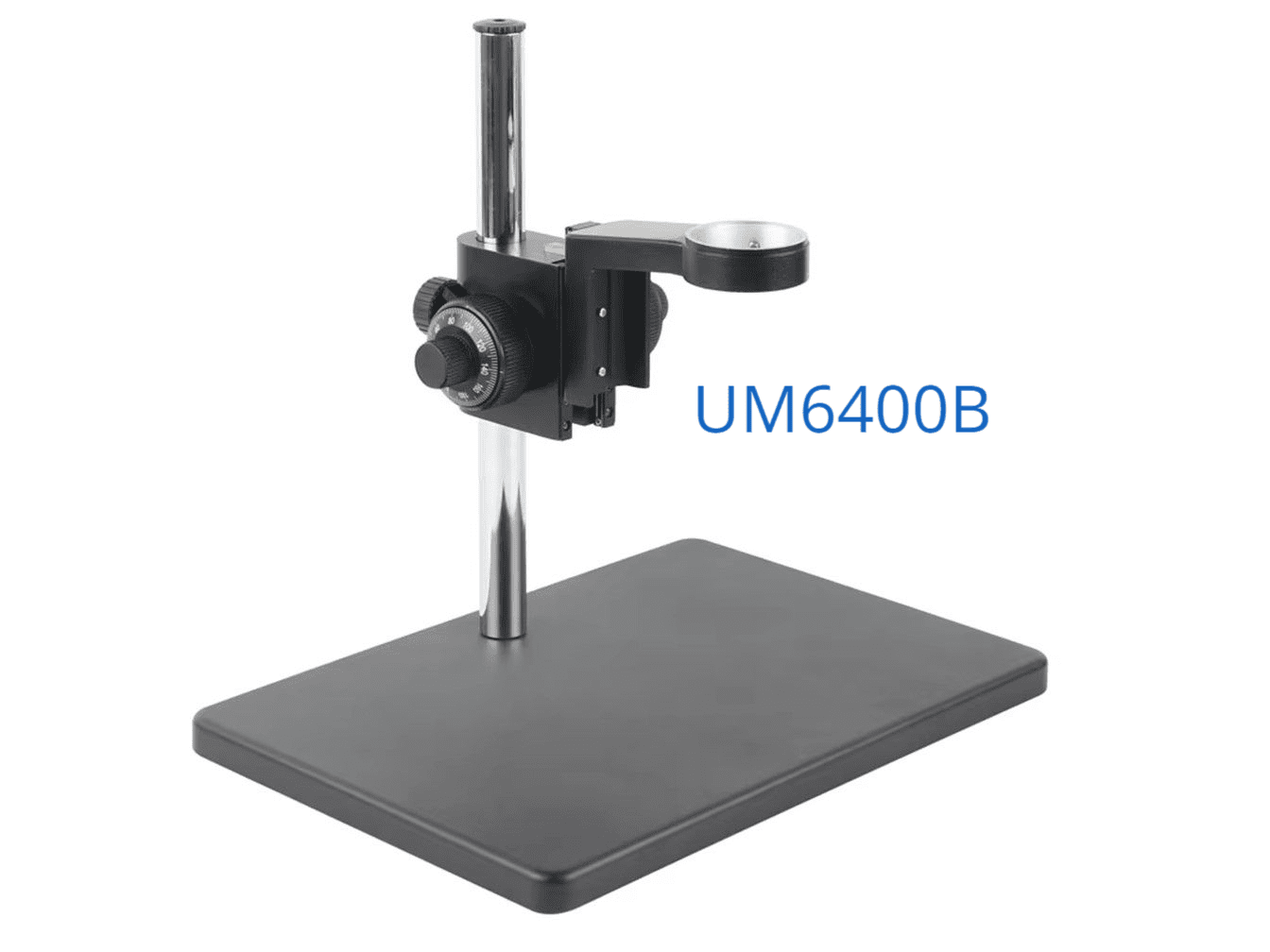

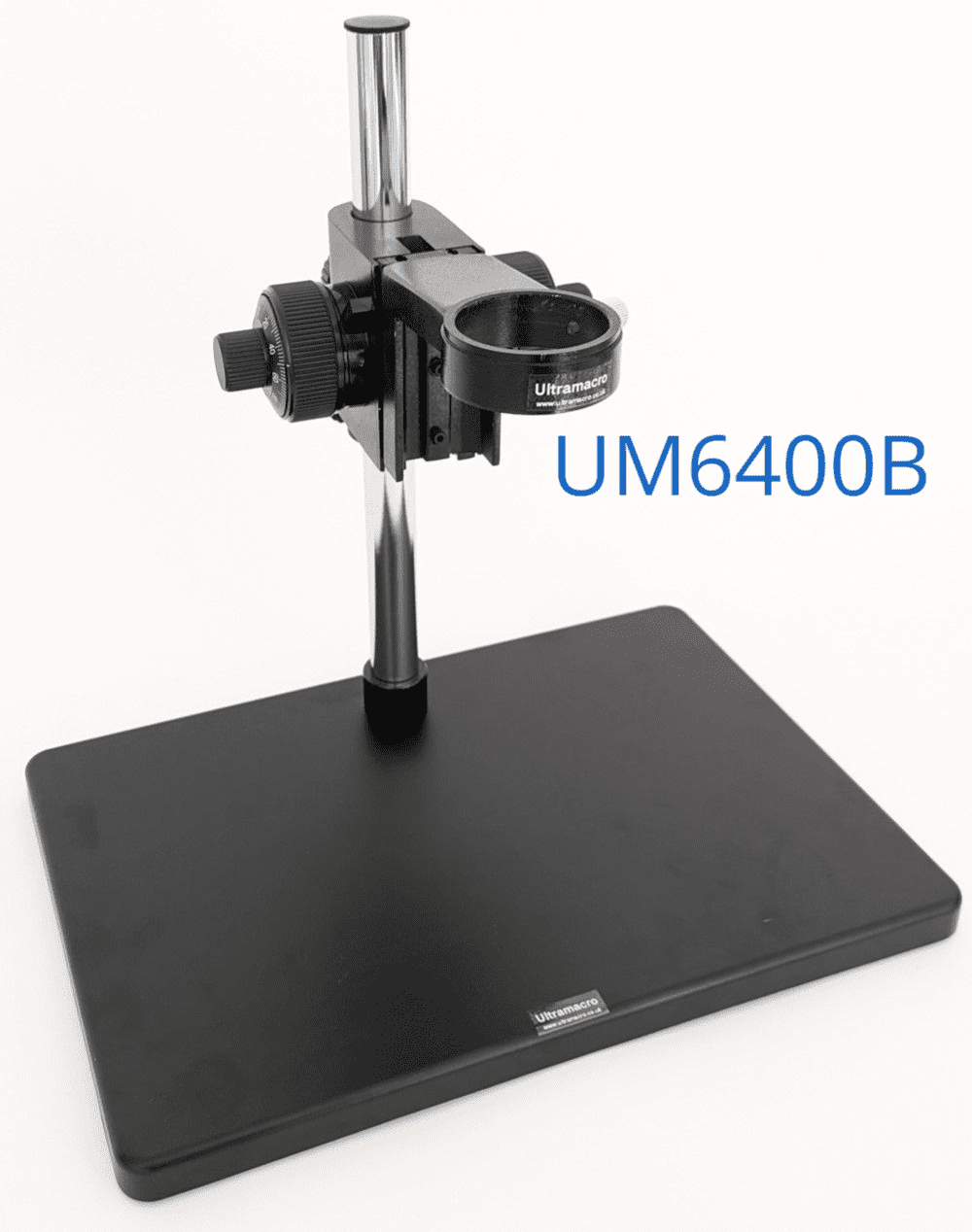

  • a Vertical Pillar Stand (UM6PS0B)

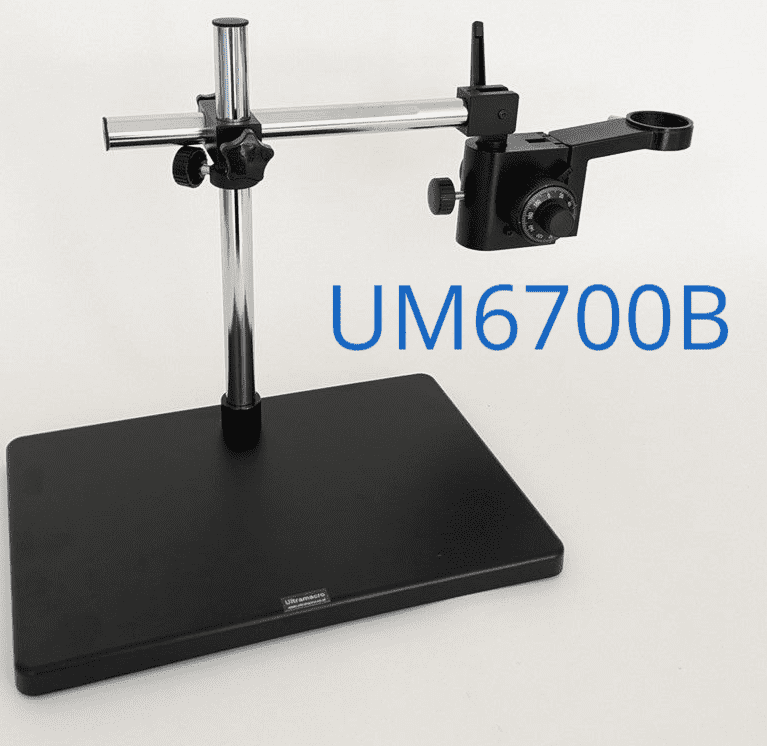

  • or a Boom Arm Stand with a horizontal arm with an adjustable end arbour at the end (UM6BA0B)
• One of these vertical pillars:
  • 350mm long by 25mm diameter (part UM7001B)

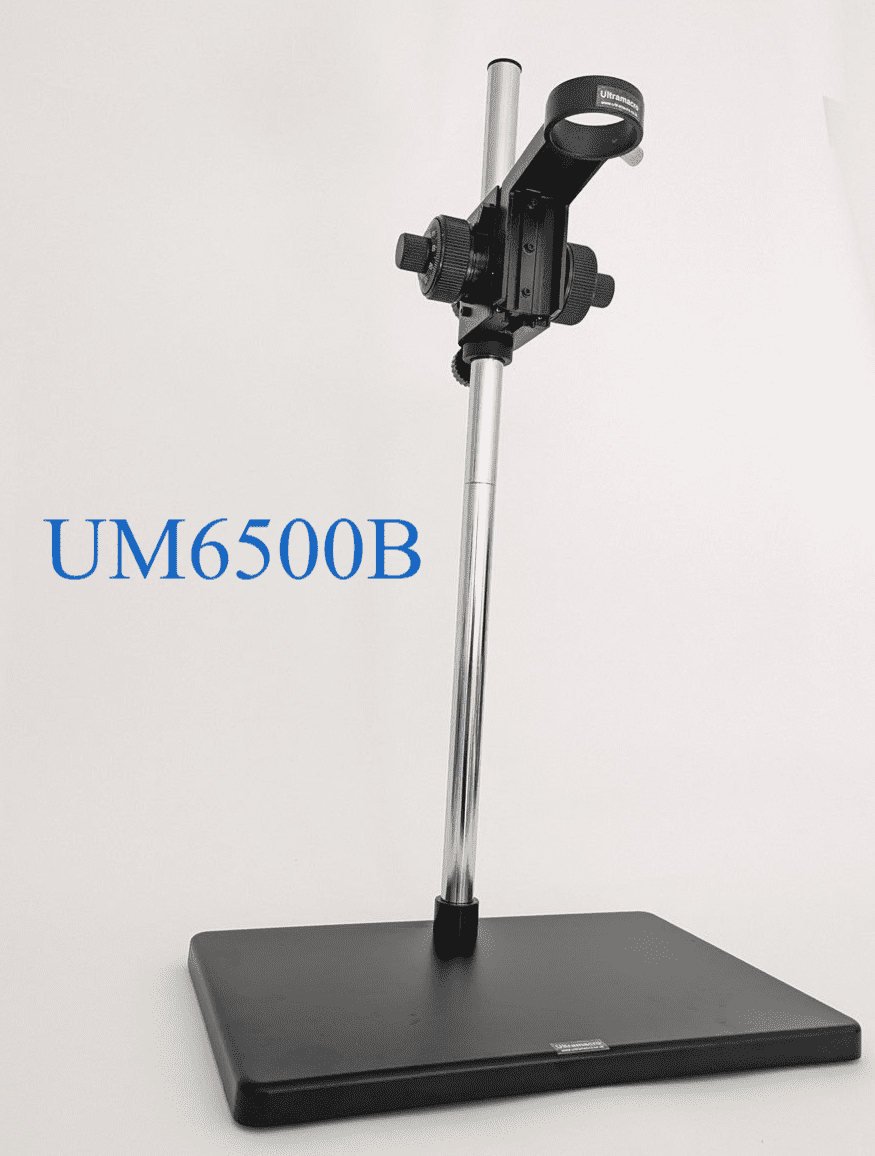

  • Tall vertical pillar 630mm long by 25mm diameter ( part UM7002) made up from UM7001B plus an extension (see option)
• Select a focussing ring which holds your lens or microscope.
  • Select the diameter you need.
  • Choose also between standard coarse focus knobs or coaxial coarse and fine focus knobs on your focussing ring
  • The focussing ring can be mounted direct ly onto a vertical pillar or onto the end arbour of the boom arm
• Pillar Slide Stop Collar (part UM7009B)

Boom Arm Long Reach versions include:

• Horizontal Boom Arm 335mmL 25mm Diameter terminating in a lockable, adjustable angle end arbour (25mm diameter) with sliding connector to pillar (part UM7004B)

Please note that exact specifications and appearance of these products will vary over time and will differ from that specified.  Changes will always be roughly equivalent or better.  All dimensions are approximate.
