The EMZ series of stereo microscopes by the world famous Japanese Meiji company comprises of range of zoom magnifications and working distances, which together with a wide range of accessories provides the ability to cover a range of applications in life science and industrial settings. These incredibly well-built microscopes have been the mainstay of industry for over 50 years and are supplied with a conditional lifetime warranty.
The EMZ-5TR Trinocular zoom microscope is used for photography and video applications. When the beamsplitter is engaged 100% of the light from the left optical path is directed to the phototube. The image can still be viewed through the right eyetube. The EMZ-5TR employs Greenough optics, for improved image flatness and contrast. The EMZ-5TR offers high resolution erect unreversed stereoscopic image. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Photomicrography made easy with over 300 available digital, analog and SLR camera adapters.
The standard configuration includes a dual illuminated LED pillar stand PKL-2.
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, etc.
Components & Accessories
* Focus Block Holder
* Auxiliary Lens
* Micrometer Lens
* Polarizing Accessories
* Protective Glass Covers
* C Mount/Camera Adapters
» Dust Cover (MA703)
» Rubber Eyeguards/Eyeshields (Paired) (MA600)
» EMZ Instruction Manual
» Limited Lifetime Warranty Card

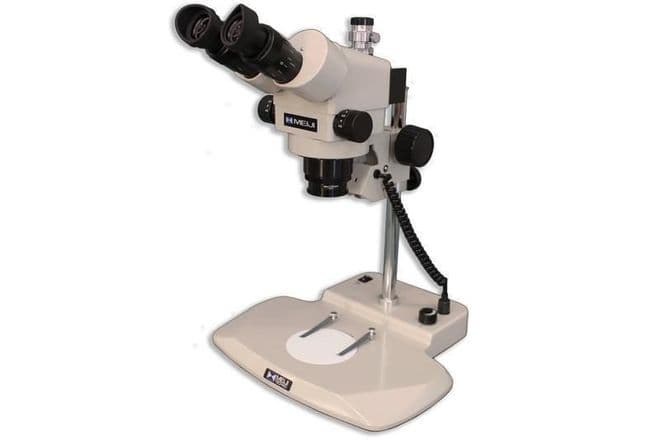

This microscope is supplied, as standard, with a dual LED illuminated wide base pillar stand as shown in the pictures.
In the options you can select different types of long reach stands to be supplied instead, the upgrade price is shown:
Long Reach Boom Stand with Desk Base AV20-40-25-7247
Long Reach Boom Stand with G-Clamp AV30-40-25-7247
Long Reach Articulated Arm Stand with G-Clamp AV20-50-25-7247
Long Reach Boom Stand with G-Clamp AV30-40-25-7247
We have over 50 other types of stands you can choose from including mirror base, motorised, high track versions. Please ask us if you require something specific - we can supply it!
For any photography getting plenty of light onto the subject is utterly essential for the best results, select from these illumination options:
iLUMos High Intensity Dual Gooseneck LED Microscope Illuminator. 0153i
- Air Cooled Powerful 20W LED light source at least 1250 Lumens! (Optional 50W LED with at least 2250 Lumens - please enquire)
- The Light Guides have unusually wide fibre bundles running through them with upgraded shielding to produce a more even light with high transmission rates
- Long Light Guides that hold their position
- Portable with carry handle
iLUMos DUAL GOOSENECK LED Microscope Illuminator. 0511i
- Adjustable focussing lenses at the end
- Long Goosenecks that hold their position
- Bright LEDs at the end of each gooseneck
- This is a Cold Light Source
- Adjustable intensity
- Special internal processor holds the light intensity constant
iLUMos QUADLED Microscope Ring Light. 2396i
- Quadrant Selectable
- Adjustable Intensity
iLUMos Stereo Microscope Ring Light, 2402i
This microscope does not require an auxiliary objective to work. Without an auxiliary objective the zoom magnification range is 0.7X-4.5X which, with the standard 10x eyepieces (included in the price) installed will give a magnification of 7X-45X. The working distance is 100mm (distance from end of the objective lens to the point on the subject that is in focus).
You can change these values by screwing onto the 'nose' of the microscope an objective lens, there are 3 magnifications available. So, for instance with the 0.5X objective attached the zoom magnification range will be halved to 3.5X-22.5X. The working distance also changes. Please note that the 2X objective is the most tricky to use because getting light onto the subject is much more difficult with lower working distances.
Additional sets of eyepieces will increase the magnification to the observer (not to the camera). It is always best, if practical) to change the magnification using an auxiliary objective because the image to the camera changes but eyepieces will not change the working distance which gives considerable advantage if working under the microscope with instruments.
You can connect C-mount cameras and DSLR cameras to this microscope using the adapters listed.
|Microscope Type||Stereo Zoom|
|Microscope Head Type||Trinocular|
|Photoport Selection||Side Lever - 100:0%/0:100% from one eyepiece tube|
|Photoport||23.2mm internal diameter port|
|Standard Magnification||7X-45X (with 10x eyepieces inserted)|
|Magnification Range with Accessories||1.9X-270X (with optional eyepieces and objectives)|
|Standard Objective||Zoom 0.7X-4.5X|
|Standard Working Distance(s)||104mm|
|Working Distance Range with Accessories||33mm - 251mm (with optional objectives)|
|Standard Eyepiece(s)||10X Widefield for 30mm Eyepiece tube|
|Standard Stand Type||Dual Illuminated Pillar Stand with Wide Base|
|Standard Stand Illumination||LED Top Spot and Transmitted Base, Adjustable|
|Standard Stand Focus||Coarse, Tension Adjustable|
|Standard Stand Stage Plates||Glass & Black/White Plate|
