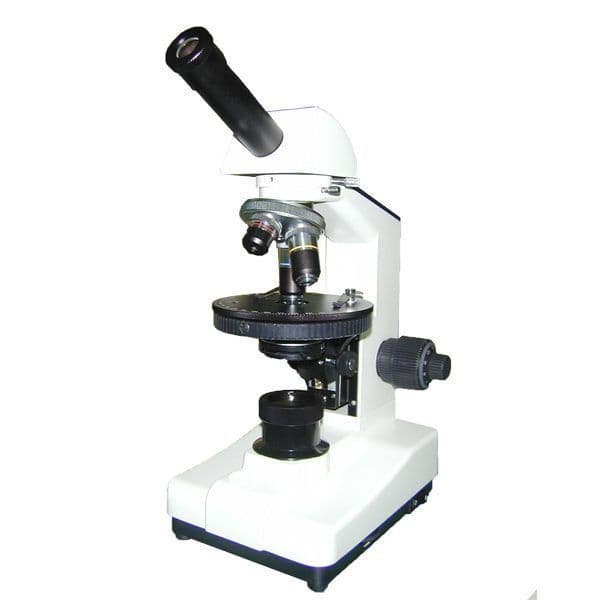

This microscope is a Teaching and Amateur Grade, Monocular, Transmitted Light Illuminated, Polarising Microscope suitable for observing polarisable materials such as geological thin sections. This microscope has a monocular head, a 10X eyepiece with a crosshair, 3 DIN Achromatic, Strain-free, Centerable Objectives 4X, 10X, 40X, a rotating, centerable stage, a Retractable Analyser in Head, Rotatable polariser, transmitted light, Condenser, Coarse/fine focus with adjustable tension
The UM1134 is equipped with a smooth, rotating, graduated stage and a set of polarisers that allow observation of all types of transmitted light polarised specimens such as thin sections of minerals, polymers, crystals and particulates.
This model, is part of Ultramacro's new range of polarising microscopes, it is affordable by amateur microscopists, schools and colleges. It is equipped with a comfortable viewing, monocular head and a set of DIN achromatic objectives giving a magnification range of 40X – 400X.
The analyser mounted in the head is retractable and the polariser is mounted over the collector near the lamp and is rotatable though 360deg. The microscope is also supplied with a rack and pinion mounted, adjustable condenser with an illumination source and coarse/fine focus knobs with limit stoppers and tension adjustment.
The UM1134 is equipped with a smooth, rotating, graduated stage and a set of polarisers that allow observation of all types of transmitted light polarised specimens such as thin sections of minerals, polymers, crystals and particulates.
This model, is part of Ultramacro's new range of polarising microscopes, it is affordable by amateur microscopists, schools and colleges. It is equipped with a comfortable viewing, monocular head and a set of DIN achromatic objectives giving a magnification range of 40X – 400X.
The analyser mounted in the head is retractable and the polariser is mounted over the collector near the lamp and is rotatable though 360deg. The microscope is also supplied with a rack and pinion mounted, adjustable condenser with an illumination source and coarse/fine focus knobs with limit stoppers and tension adjustment.
| Model | UM1134 | ||
| Eyepiece | Wide field WF10X(Φ18mm) | ||
| Objectives - strain free |
Achromatic objective 4X/0.10 | ||
| Achromatic objective 10X/0.25 | |||
| Achromatic objective 40X/0.65 (Spring) | |||
| Eyepiece tube | Monocular, Inclination of 30˚ | ||
| Polarization analyzer | Sliding | ||
| Focus system | Coaxial coarse/fine focus system minimum division of fine focusing: 2μm. | ||
| Nosepiece | Triple (Frontward ball bearing inner locating) | ||
| Stage | Rotatable stage (Diameter 120mm) | ||
| Abbe condenser | Abbe Type | ||
| Filter | Blue filter | ||
| Frosted filter | |||
| Polariser & stage | 360° rotatable stage and rotatable polariser | ||
| Illumination unit | With polarizer, adjustable brightness | ||
Customer reviews
| Brand | GX Microscopes |
| Condition | New |
| Product Code | UM1134C |
| Weight | 5kg |
