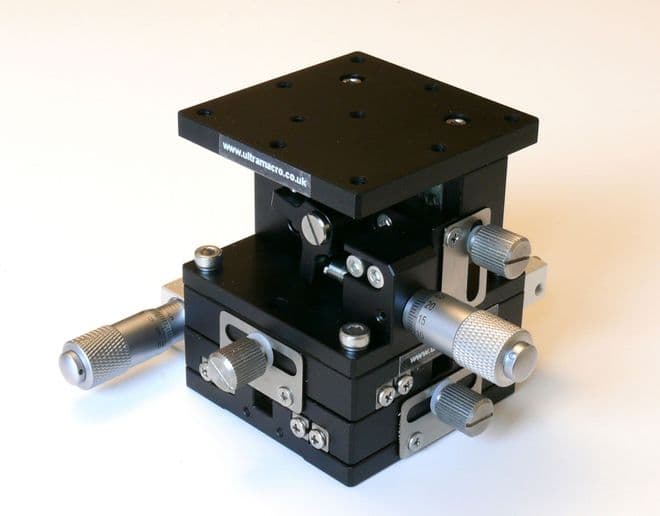

Precision XYZ Three Axis Movement Stage

Product code: UM1304
A top quality micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.

A top quality micrometer precision X,Y and Z-height adjustable stage that can sit easily onto the UM1004 stand and on most other stands. The stage can be used to mount a specimen/specimen holder, the ideal manual system for positioning and gathering a stack of images of subjects at high magnification.  Using it to mount a specimen held in something like a crocodile clip is its most common usage.  It has 10 mm of vertical travel, the height being controlled by turning a fine micrometer knob with an additional knob which can be tightened to lock the position.  Also there are similar knobs to control the X and Y movement of up to 17mm in each axis.  The movements have graduated scales on the micrometer knobs so you can make extremely precise interval movements.  This is a combination of products UM1301 and UM1303 and you can join them in different positions if you wish.

Overall Dimensions WDH (mm): 128 x 114 x 66 (shortest and XY retracted)
Overall Dimensions WDH (mm): 118 x 118 x 76 (fully extended height)
Stage Size (mm): 60 x 60
Maximum Travel XYZ (mm): 17 x 17 x 10
Weight (g): 720

product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
Brand Ultramacro
Condition New
Product Code UM1304
Weight 0.8kg
