TR-Pro Series Track Stands for Macro to Micro Photography

Ultramacro's TR-Pro series of track stands together with a choice of lens holders / focussing rings are ideal for high magnification photography and microscopy requiring a high degree of control on all aspects of the imaging task.

Download our stands datasheet here for more information on our entire range of stands:

Ultramacro's Stands Full Range Datasheet

VERSATILE LARGE RANGE
There is an extensive choice of tracked pillar heights, base types, mounts and holders, illumination and specimen stages.  Track mounted components are delivered pre-mounted.

You can choose any holder size or camera mount from our extensive range

See product list to select the holder and accessories you want.  Please note the XY mechanical stage is a special build and only suitable for use with the taller 520mm high stand, please ask us for a price.

UM14TMCOFFB
325mm High Track Stand with 1/4 inch Tripod Mount with Coarse & Fine Focus Knobs with a Non Illuminated Base

UM15TMCOFB

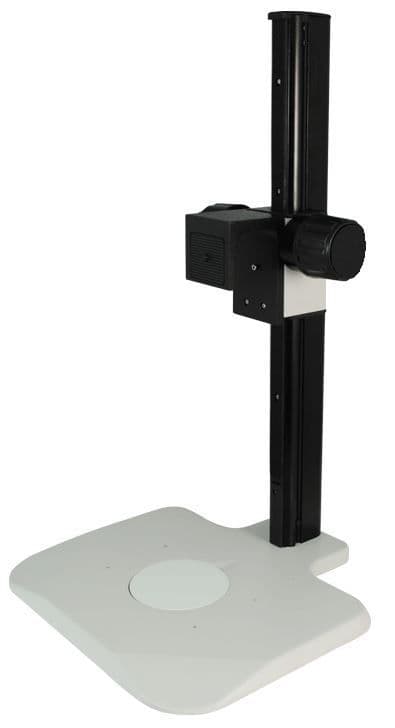

520mm High Track Stand with 1/4 inch Tripod Mount with Coarse Focus Knobs with a Non Illuminated Base

UM1576COFFLB
520mm High Track Stand with 76mm Microscope Holder with Coarse & Fine Focus Knobs with a LED Illuminated Base

UM15TMCOFLSB

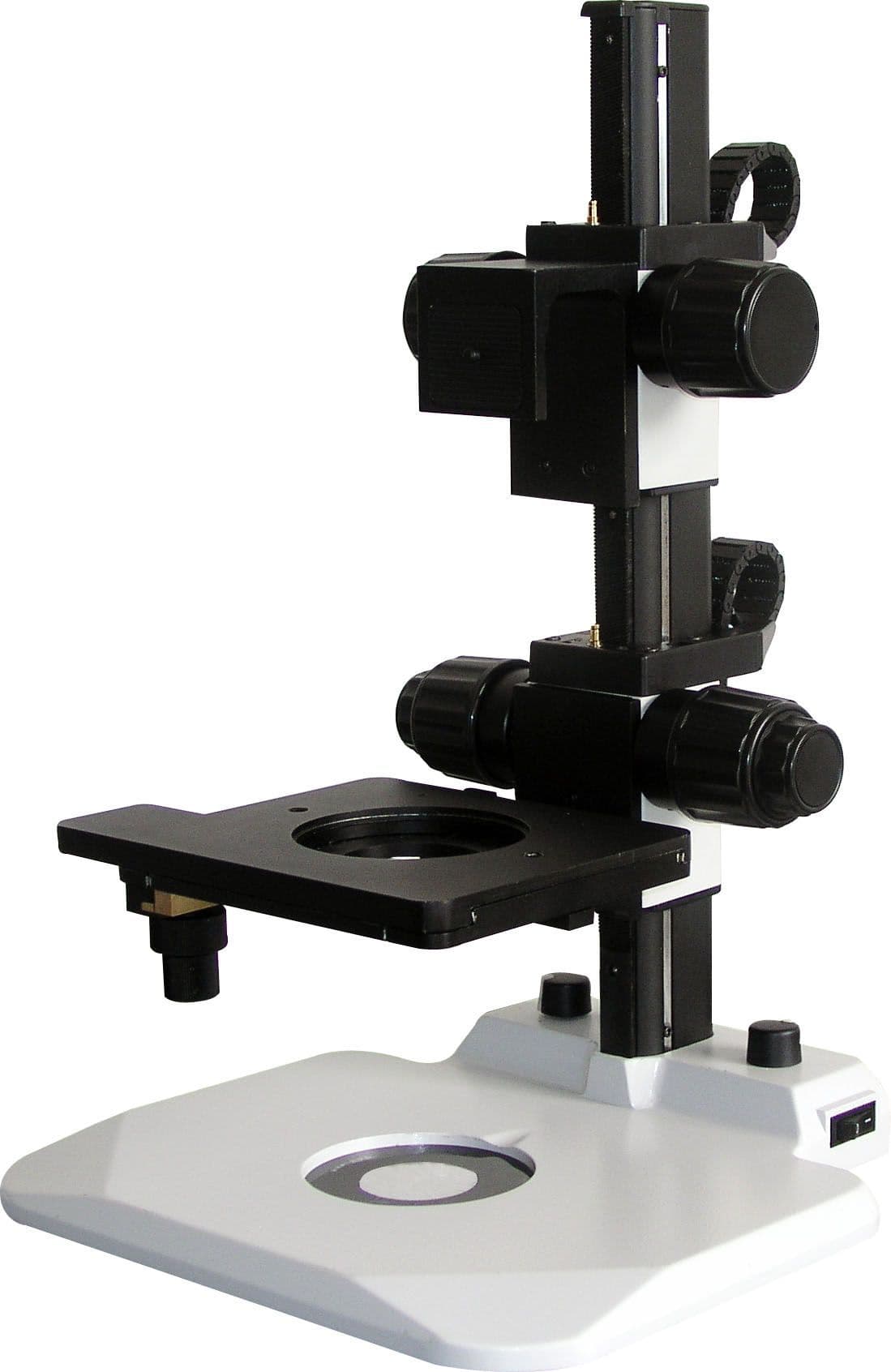

520mm High Track Stand with 1/4 inch Tripod Mount with Coarse Focus Knobs with a LED Illuminated Base and XY Stage with Coaxial Drop Side Controls with Coarse and Fine Focus Knobs.

To fit onto the track of these stands (factory fitted) we offer an extremely comprehensive range of camera mounts, lens holders and microscope holders, all are available with single 'coarse' focus knobs or with coaxial coarse and fine focus knobs, the range includes:

• 1/4 inch tripod mount for cameras and cameras with lenses attached.  These can be photographic cameras or c-mount cameras.
• Focussing rings of different internal diameters into which lenses such as ultraVU, monozoom microscopes and stereo microscope heads can be mounted.  Not all sizes that we have available are listed - if you need a specific size not shown please contact us.

There are two pillar heights to choose from 325mm and 520mm

The base of the stand can be standard non-illuminated (supplied with a reversible black/white 95mm diameter circular insert).  Or LED illuminated with intensity control providing bottom illumination, ideal for transparent or semi transparent subjects.
