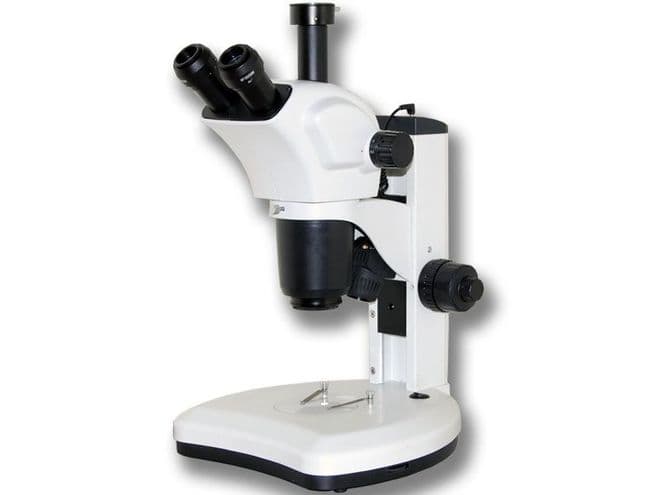

UM1078B Stereo Zoom Microscope 7X-63x (up to 351x), Trinocular with dual LED stand

UM1078B Research Grade, Long Working Distance, Trinocular Stereo Zoom Microscope with Fluorescence Option

The UM1078B is a research grade, substantial, stereo zoom microscope with high optical quality, flat field objectives, very widefield eyepieces, high quality output to camera, large zoom range, long working distance - huge choice of stands The build quality is exceptional being all metal with HD coated optical components.
The UM1078Bhas a magnification zoom range of: 7X-63X, expandable to a massive 3.5X-351X with options and is equipped with an advanced simultaneous viewing camera port on the trinocular head as standard for live image viewing capture and analysis.

• Huge choice of stands
• This microscope has an optional fluorescence imaging attachment making it a truly versatile workhorse for almost any application.
• This stylish microscope is the very latest, modern design by Ultramacro.  It includes all the features you would expect to see from such an advanced design including simultaneous image output to both eyepieces and camera port.  The UM1078B has superb quality coated optics which deliver a bright, crisp, high resolution image in beautiful 3D.  The 3D effect is produced by the presence of a pair of angled zoom objectives each of which presents a slightly different view of the subject and transmits this to each eyepiece.
• Fluorescence option

This microscope is suitable for use for almost every task including entomology, PCB repairs, research, university teaching, industrial inspection and any dissection work.. It is supplied with a stand which has both top and bottom illumination, although, for photography, we strongly recommend adding additional lighting for optimum results such as a ring light or fibre optic goosenecks.

STANDS
This microscope is supplied, as standard, with a dual LED illuminated wide base pillar stand as shown in the pictures.

In the options you can select different types of long reach stands to be supplied instead, the upgrade price is shown:

Long Reach Boom Stand with Desk Base


Long Reach Boom Stand with G-Clamp


Long Reach Articulated Arm Stand with G-Clamp


Long Reach Boom Stand with G-Clamp

We have over 50 other types of stands you can choose from including mirror base, motorised, high track versions.  Please ask us if you require something specific - we can supply it!


SUPPLEMENTARY ILLUMINATION
For any photography getting plenty of light onto the subject is utterly essential for the best results, select from these illumination options:


High Intensity Dual Gooseneck LED Microscope Illuminator.

• Air Cooled Powerful 20W LED light source at least 1250 Lumens! (Optional 50W LED with at least 2250 Lumens - please enquire)
• The Light Guides have unusually wide fibre bundles running through them with upgraded shielding to produce a more even light with high transmission rates
• Long Light Guides that hold their position
• Portable with carry handle

• Adjustable focussing lenses at the end
• Long Goosenecks that hold their position
• Bright LEDs at the end of each gooseneck
• ​This is a Cold Light Source
• Adjustable intensity
• Special internal processor holds the light intensity constant

• Quadrant Selectable
• Adjustable Intensity

Stereo Microscope Ring Light,
