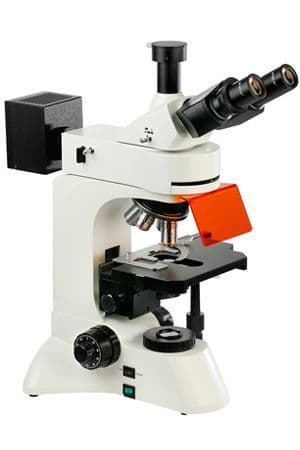

Representing amazing value for money this top of the range UM1116C infinity optics trinocular LED fluorescence microscope is designed for use in laboratories undertaking routine and research fluorescence microscopy such as hospitals and universities.
The outfit includes 4 Filter Cubes Blue, Green, V, UV (more available) mounted on a rotating selector and incorporates the world's first lamphouse containing 4 ultra-bright waveband specific LEDs for fluorescence.
The supberb quality optics give a bright, crisp image of your specimens and the image delivered to any camera that is attached are of equal high quality.
- Trinocular head with interpupiliary adjustment and diopter adjustment. The camera port accepts c-mount and DSLR adapters
- Pair 10X super-widefield FN22 eyepieces
- Reversed quadruple nosepiece (quintuple optional), infinity corrected optics, 4X, 10X, (20X optional), 40XFL, 100XFL Oil, wide barrel plan achromatic objectives
- Large mechanical stage, ergonomic coaxial coarse/fine focus, Abbe condenser on rack & pinion, large stable stand
- 4 filter cubes: blue, green, V, UV included (more available) mounted on a rotating selector. 4 ultra-bright, waveband specific LEDs for fluorescence epi-illumination
- Bright white LED adjustable light, Koehler illumination
- Large range of accessories including darkfield condensers, phase kits, polariser kits, camera adapters, cameras and fluorescence attachments
Additional product information
| Brand and ID Number | Ultramacro UM1116C |
| Eyepieces and Objectives | Pair of 10X Widefield FN22 Eyepieces. 4 Plan Achromatic, Infinity Corrected Objectives; 4XPLBF, 10XPLBF, 40XPLBF, 100XPLBF Oil (Others Optional) |
| Head | Trinocular Head with interpupiliary adjustment and diopter adjustment for the eyepiece tubes. |
| Stand & Focus Mechanism | Ergonomic Focus Control Large, Stable Stand Stylish with a high quality metal body with easy-to clean resistant paint coating with illumination collector lens and field diaphragm mounted in base |
| Stage and Condenser | Large, bearing mounted mechanical stage with spring loaded slide clips size: 210X140mm; movement range: 50X70mm Abbe condenser with diaphragm, height adjustable NA=1.25 |
| Illumination | LED |
Customer reviews
| Brand | GX Microscopes |
| Condition | New |
| Product Code | UM1116C |
| Weight | 15kg |
